Game Boy Display Lines/Bars

Scritto Da: Mitchell
  • Commenti: 4
Game Boy Display Lines/Bars

Difficoltà

Moderate

Passi

5

Tempo Necessario

30 secondi - 1 ora

Introduzione

Fixing the common problem of lines/bars on the original Nintendo Gameboy.

  1. RGmrtMWJ22OpxZFE
    RGmrtMWJ22OpxZFE
    tNtPdItZdLZBTNWp
    NcYqWKSBrD24DMaP

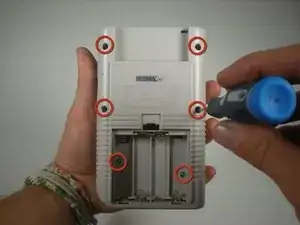

    • Remove the back housing by removing the 6 Tri-Point or Philip screws.

    • Note: The last 2 screws are in the battery compartment.

  2. 5XsrOwwGJqbDjQ4n
    5XsrOwwGJqbDjQ4n
    IdJxrHITpNEKj6Q4

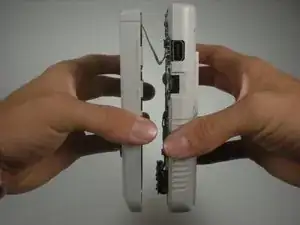

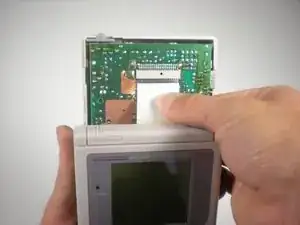

    • Carefully lift up the top half of the system. Be careful, there's a ribbon cable that connects the top and bottom half of the system.

    • Remove the ribbon cable for the next step.

  3. VLdVw2kJEhanXVEY
    VLdVw2kJEhanXVEY
    FAfgnq5ODr43ZnYd
    TmpLEijPNdKvLHKE

    • Now there will be screws that mount the board to the front, carefully unscrew these.

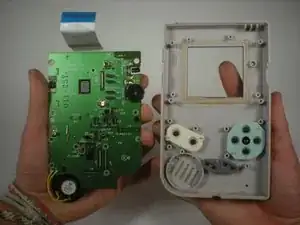

    • Now remove the board from the housing.

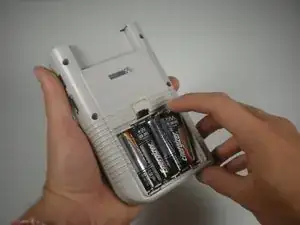

    • Now put the batteries back into the compartment, so you can test the screen while you fix it.

    • Reconnect the the board to back housing with the ribbon cable.

  4. DyUTe2WEwug3gJvn

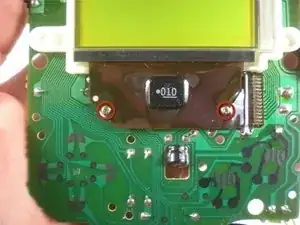

    • You're now going to turn the contrast ( the slider on the left) all the way up, and take your soldering iron and gently move it back and forth on the ribbon cable below the screen.

    • Make sure not to touch the screen itself.

    • Note: There may be a rubber strip covering the ribbon.

    one picture should show where to exactly put the soldering iron.

    Helmut Kohli -

    The picture does not completely match the description.

    Helmut Kohli -

    it would be handy to know what temperature to set for the soldering iron

    Vincenzo -

    • You will start to see the lines of pixels fade in and out, keep moving your iron back and forth until screen is completely black.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Mitchell

Membro da: 03/04/16

184 Reputazione

Un commento

Hi, this is the second time I attempt this fix, the first time it worked perfectly. The problem is that with this second machine there's a couple of pixel lines that have not tickled back to black even though I have been patiently going over them for quite some time (2 rounds of 10-15 min) is there anything else that I could try or should I just go on over the same area until I see something happen? Thanks in advance

Jose Saura -
