Garmin GPSmap 60CSx Battery Terminal Replacement

Scritto Da: Thomas Humphrey
  • Commenti: 13
Garmin GPSmap 60CSx Battery Terminal Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

45 minuti

Introduzione

If you know your batteries are not the problem, but your device will not power on, your battery terminals may be corroded. The following is a guide on how to replace battery terminals on the Garmin GPSmap 60CSx.

  1. XFaCOrQCMBxSdrsG

    • Lift and twist the battery cover release 90 degrees counterclockwise on the back of the device.

  2. PXRLDJa3UhF6aYie

    • Lift battery release up to remove battery cover.

  3. V5NGKPiaFHAsBGOv
    V5NGKPiaFHAsBGOv
    sT2xwNMNQFma2Qhm

    • Pull AA batteries out.

  4. gUnWdxqiZUOaViZ6

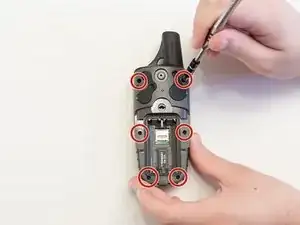

    • Remove the six 10 mm screws on the back of the device with a Phillips #0 Screwdriver.

  5. 11TubPVMTKLWqbcn
    11TubPVMTKLWqbcn
    DhGYup4HMwhJYxtD

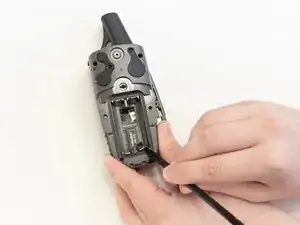

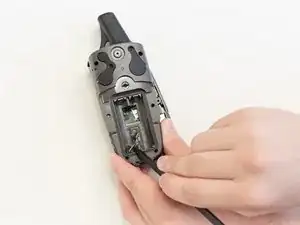

    • Place spudger behind the lower right battery terminal.

    • Push spudger behind the battery terminal to pop it out of place.

    • Now do the same on the bottom left side.

  6. G3EKnvlrgqZcyCUQ
    G3EKnvlrgqZcyCUQ
    tCGygMHmkWJCGChl

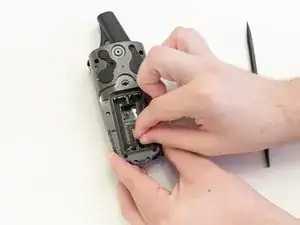

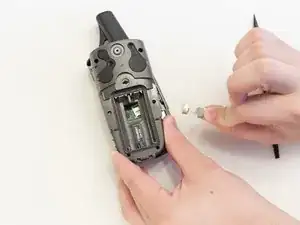

    • Grab the now loose battery terminals and pull them from the GPSMap 60CSx.

  7. GHRayjNgG1EwPCRT
    GHRayjNgG1EwPCRT
    2VXJ3pU3OWAPpmHO

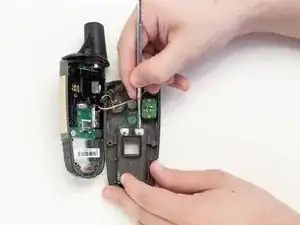

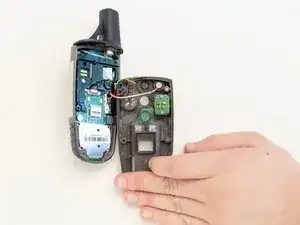

    • Flip the back panel over to expose the backs of the top battery terminals.

    • Use a metal spudger to remove the glue that covers them.

  8. MBDvkgv1vF4JuKPT
    MBDvkgv1vF4JuKPT
    UM1dOseJgr332ZUY

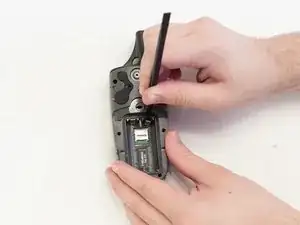

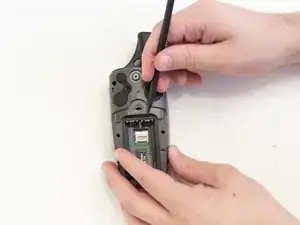

    • Flip the back panel back over to view the battery compartment.

    • Place the spudger behind one of the top remaining battery terminals.

    • Push the spudger down and pop the battery terminal out of place.

    • Repeat with the remaining battery terminal.

    Where can I buy new battery terminals for my Garmen Rino 120. My terminals are corroded. Thanks for any input.

    Joan Carbonel -

    Where can I purchase new battery terminals for my Garmen Rino 120? My terminals are corroded. Thank you for your input.

    Joan Carbonel -

    Yes. Where do you get new terminals?

    andrewliznichol -

    Where can I buy a new battery terminal for my CX60 ?

    jdj -

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Thomas Humphrey

Membro da: 05/04/18

540 Reputazione

9 commenti

What did you use to replace the contacts?

Austin Chopra -

Where can I buy replacement terminals?

Mitch -

Mitch, Garmin just told me they do no sell replacement terminals for this 60CSx. Were you able to find any?

Ernie Sammons -

Where can I find replacement battery terminals for a

Garmin 60CS4?

Sonny Pierce -

Where can I find replacement battery terminals for a Garmin Map76CS?

Paul -

I think I found some terminals from Keystone Electronics…Part Number 5209…Ordered through Mouser Electronics …Have to scroll through their parts list while looking for the Keystone number (2nd column). It does not have the slot in the back so won’t know that it works until I try to assemble.

Ed Taylor -

Would be interesting to know where additional contacts could be purchased. I have had a battery explosion in mine and one of the terminals has corroded.

Aaron -

I have the same problem as all the above. I purchased some of the above replacement contacts Keystone Electronics…Part Number 5209…Ordered through Mouser Electronics and found that I needed a double contact since my bad one was the one that is bridged. I was able to modify the new contact to where it would slide into behind the original bridged contact. While it isn't totally correct it does work.

A couple of hints. My GPS is the Garmin GPSmap 62SC and the screws on the back were 3/32 allen heads and not a phillips. I ruined one of the screw heads and had to drill it out, fun fun. So be aware of what the actual screw head is. I should of gotten the magnifier out before I started.

Jim Peterson -

I purchased 4 Keystone Electronics 5209 Battery Contact Springs w/Lug from the DigiKey.com website. The total cost was under eight dollars. DigiKey is located in Thief River Falls, MN, so the delivery time was quite reasonable.

Bill Jenkins -
