Garmin GPSmap 60CSx Gasket Replacement

Scritto Da: Samantha Shelton
  • Commenti: 0
Garmin GPSmap 60CSx Gasket Replacement

Difficoltà

Easy

Passi

5

Tempo Necessario

5 minuti

Introduzione

The gasket can break and become unusable, compromising the protection of the internal structure of device and rendering it vulnerable to water. This guide will aid you in its removal and replacement.

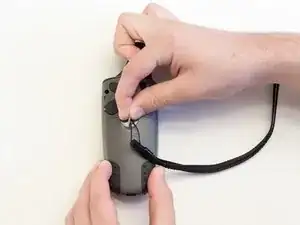

  1. XFaCOrQCMBxSdrsG

    • Lift and twist the battery cover release 90 degrees counterclockwise on the back of the device.

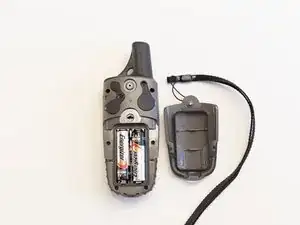

  2. PXRLDJa3UhF6aYie

    • Lift battery release up to remove battery cover.

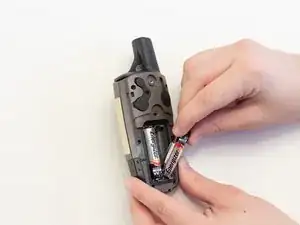

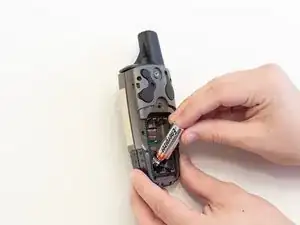

  3. V5NGKPiaFHAsBGOv
    V5NGKPiaFHAsBGOv
    sT2xwNMNQFma2Qhm

    • Pull AA batteries out.

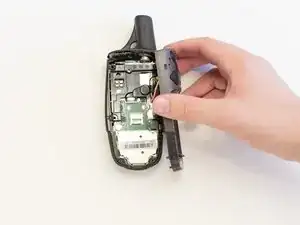

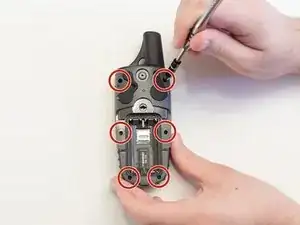

  4. Vo3uSr5wu4LSMJNa
    Vo3uSr5wu4LSMJNa
    KbuVVkCuFJpQalTH

    • Remove the six 10 mm screws on the back of the device with a Phillips #0 Screwdriver.

    • Separate the back panel from the front.

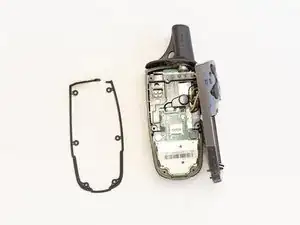

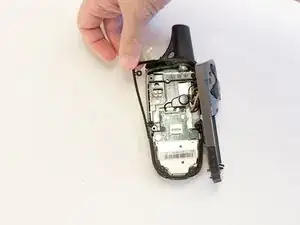

  5. JoEKakuRJgPVEjSD
    JoEKakuRJgPVEjSD
    b6O6T4EMQTlBPuCL

    • Remove the gasket.

    • Be careful to make sure the gasket is aligned correctly to ensure it is water proof.

Conclusione

To reassemble your device, follow these instructions in reverse order.
