Gateway MS2285 Hard Drive Replacement

Scritto Da: Chris mello

Commenti: 0

Difficoltà

Easy

Passi

Tempo Necessario

10 minuti

Introduzione

Upgrading your hard drive will allow you to store more movies, pictures and, applications on it. Also, if you add a solid-state hard drive, your boot time will decrease. Furthermore, hard drives tend to fail after long periods of time, so backing up your data and replacing your hard drive is one way to make sure your documents are safe.

Strumenti

Phillips #00 Screwdriver

Passo 1

Turn the laptop over so that the underside is facing towards you.

Passo 2

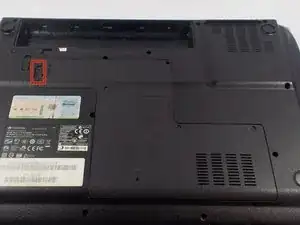

Slide the short slider one towards the unlocked lock symbol.

Passo 3

Slide the long slider towards the unlocked lock icon.
This slider is spring loaded and may require a little force.
If done correctly, a click will be heard and the battery will be slightly raised.

Passo 4

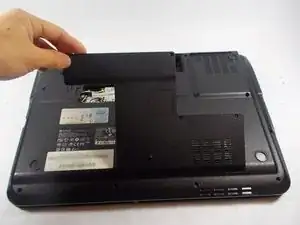

Grasp the battery's raised end and lift upwards.

Passo 5

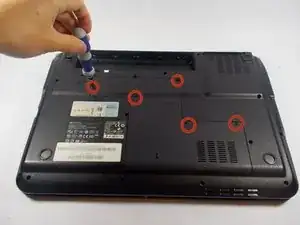

Use the Phillips head screwdriver to remove the five screws holding the back plate.
The screws are counter-clockwise threaded.

Passo 6

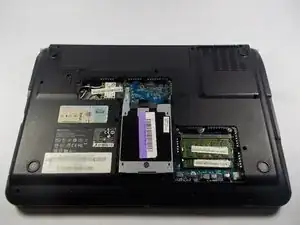

Place fingers under back plate via the indentation and lift upwards to remove.

Passo 7

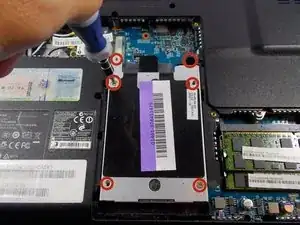

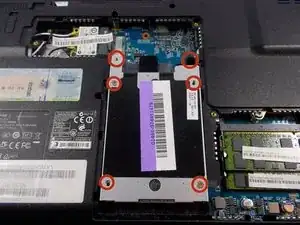

Unscrew the six screws holding the hard drive cover in place

Passo 8

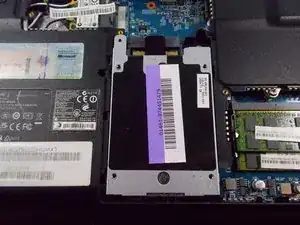

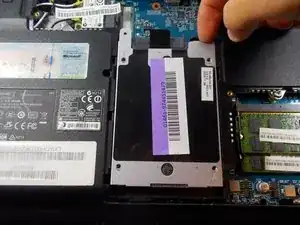

Grip onto the cover and slide it away from the connector to release the cover and hard drive.

Passo 9

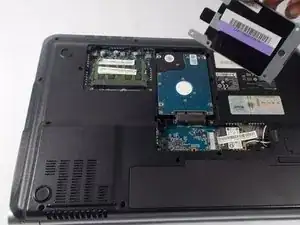

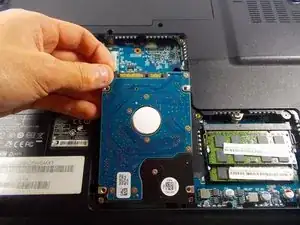

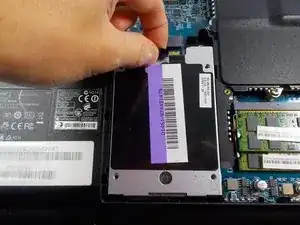

Grip onto the black plastic tab to lift the end enough to get your fingers under.
Once it is high enough, place another finger or fingers under the cover and lift straight off.
