Graco Secure Coverage Speaker Replacement on Parent Unit

Scritto Da: Ahmed Elshaer
  • Commenti: 0
Graco Secure Coverage Speaker Replacement on Parent Unit

Difficoltà

Moderate

Passi

7

Tempo Necessario

Nessuna stima

Introduzione

Use this guide to replace the speaker on your Graco Secure Coverage Digital Baby Monitor for parent unit.

The speaker replacement includes the speaker and battery replacement.

  1. xrupRgUOX1Ojcj6A
    xrupRgUOX1Ojcj6A
    mKmSBKgAhwI1RKqi
    mFhZdqvOGYAIW6Ei

    • Using plastic opening tool, pry and remove the battery lid.

  2. fLHcQcBMPES5yYKn

    • Remove the battery by holding the device with one hand and pulling the battery out with other hand carefully.

    • Make sure that you disconnect the battery's wire before you remove the battery.

  3. 1WWSSH1MMEeUeyf4
    1WWSSH1MMEeUeyf4
    ffq5NjREoBCnkUCU

    • There are two screws on the rare case of the device. For the one shown in red marker requires either an extended screwdriver or putting on a little pressure on a regular screwdriver.

    • Remove the two 9mm Phillips #1 screws from the rare case of the device.

    • If you cannot remove the screw with low pressure, do not use high pressure to remove it. It may cause a damage on the device case. Use an extended screwdriver instead.

  4. dZp6KC2BZbQDlYNM
    dZp6KC2BZbQDlYNM
    a4jkTUfqoNM3gUrd

    • Using opening plastic tool, pry the two grey cases from both sides of the device.

    • Take your time and apply constant force to avoid breaking or damaging any other plastic parts.

    • While pry off the grey cases, hold the device with your other hand to remove the cases.

  5. pKPPhuTgpeTGJ2nW

    • Pry the edges of the device to separate the front case away from the rare case.

    • While prying the edges, hold the device with one hand to pull out each case a part.

    • Make sure you use a constant force, and the pushbuttons are pried off completely.

  6. RoXojv21WALUKesN
    RoXojv21WALUKesN
    s2oGxUPKspUQHZhR

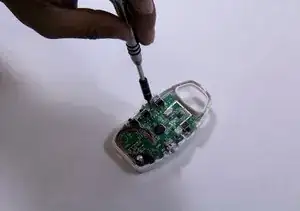

    • Remove the 7mm Phillips #1 screw from the mother board.

    • Place the screw in a secure place.

    • Pull out the mother board away from the case carefully.

  7. GCHsuDnMtXNsTvNx
    GCHsuDnMtXNsTvNx
    K2FkWZYpJfwd1iKC

    • Pick up the motherboard.

    • Solder off the speaker from the device's case.

    • Solder off the speaker from the mother board.

    • There are many pins attached to the mother board, make sure you solder off the proper pins that attached to the speaker wires.

    • Replace the speaker.

Conclusione

To reassemble your device, follow these instructions in reverse order.
