HP 5406 zl Switch Chassis (J8697A) Replacement

Scritto Da: Eneider Colina
  • Commenti: 0
HP 5406 zl Switch Chassis (J8697A) Replacement

Difficoltà

Very easy

Passi

3

Tempo Necessario

10 minuti

Introduzione

  1. hrYlGYTiQABxqeaM
    hrYlGYTiQABxqeaM
    QvpWBYLwvh3rCtcT

    • The equipment comes with two modules to install a supervisor card and 6 expansion slots for compatible modules.

    • J8726A Management Module.'

    • J8705A Module 20p 10/100/1000 + 4p SFP.

    • 'RESET' and 'CLEAR' buttons used for: 'CLEAR' Erase only the access passwords when pressed for at least 1 second. 'RESET' Restores factory default settings when pressed in a specific pattern.

    • RS232 console port; any baud rate from 2400 to 115200 (the switch automatically detects the speed) 8 data bits, 1 stop bit, no parity and flow control set to None

    • USB port

    • J4858C - HP Gigabit-SX-LC Mini-GBIC

  2. AukMPX1aQpiiJeUj
    AukMPX1aQpiiJeUj
    oIUkoZNJPsXmsXrv
    kpVirIUE4iWBTcTf

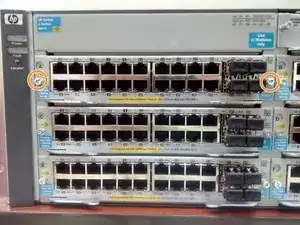

    • The modules can be removed with the equipment turned on, with the exception of the 'Management Module'.

    • Loosen the screws, the screw contains a spring and once it is loose it will be ejected and will remain in the equipment.

    • To remove the module, pull the handles that are on the bottom of the module.

  3. lPeXqZwCpBPsyLtT
    lPeXqZwCpBPsyLtT
    GhKUd2QtrSlHts2l
    TTiZFxVZJbmASZO1

    • Do not remove while the equipment is on

    • Following the same procedure above, loosen the screws and pull the levers of the module to remove it.

    • RAM Memory

    • Flash card

Conclusione

To reassemble your device, follow these instructions in reverse order.
