HP Chromebook 14-Q010DX Hard drive Replacement

Scritto Da: Kevin Piper
  • Commenti: 7
HP Chromebook 14-Q010DX Hard drive Replacement

Difficoltà

Moderate

Passi

23

Tempo Necessario

30 minuti

Introduzione

This guide will require removal of 1x3mm screws.

  1. rTgUkWXeIjWfhJcx
    rTgUkWXeIjWfhJcx
    SjfgyAv25cWEMocK

    • Flip the laptop with the base of the laptop is facing you.

    • Using the #00 screwdriver, unscrew these screws.

  2. HOQCvYq4UmPC6yVr
    HOQCvYq4UmPC6yVr
    UBO21MeVoQs2RgKN
    1OwaB2cOiKGJFiDC

    • Warning! When prying open a laptop it could require some force, but it also has fragile connectors underneath. Use caution so as to avoid breaking these connectors.

    • Start from the top right corner of the laptop and work clockwise with an iFixit opening tool or spudger to pry the keyboard from the frame of the laptop.

  3. VKnKBtlTplmYBQmh
    VKnKBtlTplmYBQmh
    4ZUPEP4Hx4UEB6k2
    GIiayODhtKmVgKuN

    • Warning! Handle the flaps and ribbon cables with care to prevent damage.

    • Gently pull the keyboard in the opposite direction of the screen, so the wires beneath are exposed.

    • Lift the black flap and pull the blue ribbon gently towards you until it is disconnected.

    • Lift the white flap and pull the blue ribbon towards you until it is disconnected.

  4. p42wjgUxJJWmQAq5

    • Lift keyboard slightly and remove the strip gently to prevent damaging any parts.

    • The tape has no function other than to keep the wire tucked away.

  5. 4GlFGjxrrWBtTj1C

    • Set aside the detached keyboard.

  6. MPAi2jea5Nk3QMsT
    MPAi2jea5Nk3QMsT
    e4oaUC31NdbbvrfO
    DtJaOYV6dAMJEAuR

    • Undo the black tape located on the bottom from the frame of the laptop.

    • The tape has no function other than to keep the wire tucked away.

    • Using fingers or the spudger, slide out the black connector indicated on the left.

    • Use a #00 screwdriver to remove the two screws.

  7. GaB2fNTIVKqUIgAE
    GaB2fNTIVKqUIgAE
    NkIYDZSikHXWxR4W

    • Gently remove the speakers.

  8. DLdGJo2NoRGMQDWu
    DLdGJo2NoRGMQDWu
    OBhWFKkjEvDuxCTr

    • Note the shape that this wire strip is resting at and that the blue tip of the strip goes into the right connector for reassembly.

    • Lift the black flaps and gently pull the strip out.

    • Set the strip aside.

  9. UrMVkBMMvZkAk6OW
    UrMVkBMMvZkAk6OW
    uSQ5GkuYPC4VIwY3
    rpMxcujXaWQ5YQtx

    • Remove the screw.

    • Use your fingers to pull the white tab out of the black slot above the battery.

    While reassembling, the chromebook powered up when I reconnected the battery. Didn’t know how I could power it down, as the keyboard was not connected at this point.

    Bart -

  10. nhA12bIcwK1kAyCV

    • Gently remove battery.

  11. gsxE6ESkLK5QNYMT
    gsxE6ESkLK5QNYMT
    mIGCdyN6KtKVPo43

    • Using a spudger, remove the white and black cables from the card.

  12. 52pjUioE2DBRKXlL
    52pjUioE2DBRKXlL
    Y6hRL6drNZ3KCUBh

    • Remove screw from card.

  13. uXsLRyGiBamW2KQu

    • Gently pull card at a 45° angle to remove it.

  14. 55vnG4EUxJj52MZ5
    55vnG4EUxJj52MZ5
    XcdNS4BpEySOvk1K

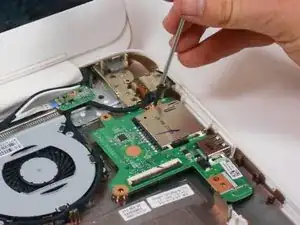

    • Remove screw indicated by the red circle at the top of the card port.

  15. PTquSeVkDMtvZLBN

    • Gently remove the USB/SD card port.

  16. xdox3qGDCqnoQ4Tx
    xdox3qGDCqnoQ4Tx
    EWQQV4X5RaFH6Atp
    FFot2vRj2BEEGVGg

    • Remove the 3 screws around the fan.

    • Using your fingers or the spudger, disconnect the cable connecting the fan to the motherboard.

  17. HmfnctFqa6KRwfxu

    • Gently remove fan.

    how do I go about taking the fan off and what do I do after that?

    Maddie -

    Do I need to replace my fan?

    Maddie -

  18. nPvMTqxYtCE2fwuJ
    nPvMTqxYtCE2fwuJ
    YuwQr2RF2ON1a1YC

    • Using your fingers or spudger, pull out the connector.

  19. ujYTiDnJeIIWA2wV
    ujYTiDnJeIIWA2wV
    M5EfmvMCOYTPHQH4
    sCoyMSwtX4VTx5lV

    • Remove all of the indicated screws.

    • Pull up on black strip to remove the monitor cord.

    The pic with the 3 screws circled in red is missing

    Paula Hague -

  20. PEl3oVl6PETsKOLC

    • Gently remove motherboard.

  21. xBTOdCIcPFZ5FJwT

    • Flip motherboard over.

  22. cL6QiW3ZCPQGoZob

    • Remove the screw indicated by the red circle.

  23. mLLstjeeUrabTGEp

    • Remove the hard drive by pulling the device from the black slot.

Conclusione

To reassemble your device, follow these instructions in reverse order.
