We are going to help you remove and replace a component of your HP Chromebook CB2L. The component that this guide helps you with is the Speaker of the HP Chromebook CB2L. Please take a look at this troubleshooting page to confirm that this component needs replacement.
Strumenti
-
-

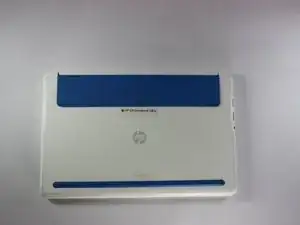

First flip your HP Chromebook CB2L over such that the bottom is facing upwards.
-

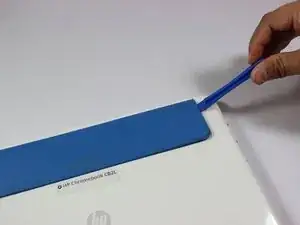

Next, using the plastic opening tool remove the blue panel.
-
-
-

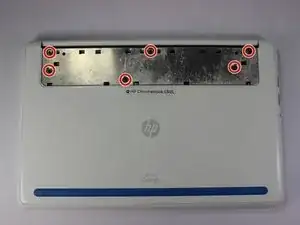

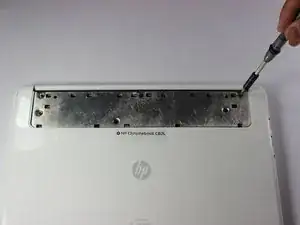

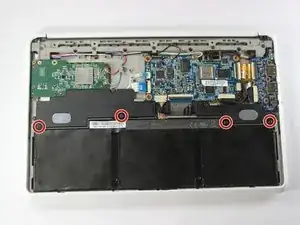

Using the Phillips #1 screwdriver, remove the six 1.2mm screws.
-

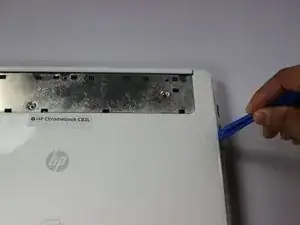

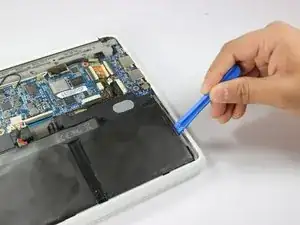

Gently pry off the white back panel using the plastic opening tool.
-
-
-

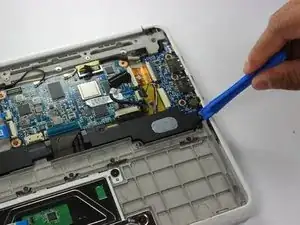

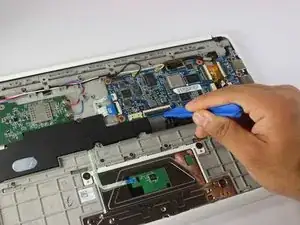

Using the plastic opening tool lift the black tab.
-

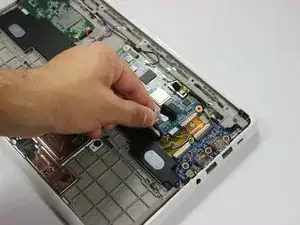

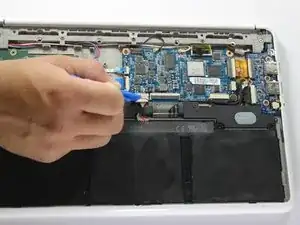

Disconnect the blue and black strip from the motherboard.
-
-
-

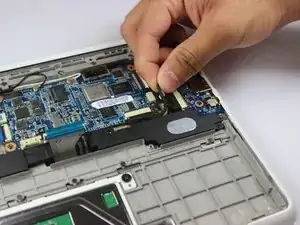

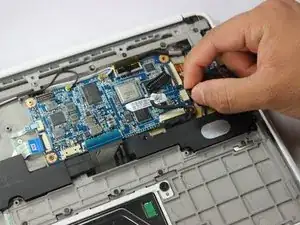

Gently pull the black wire to disconnect the audio port from the motherboard.
-

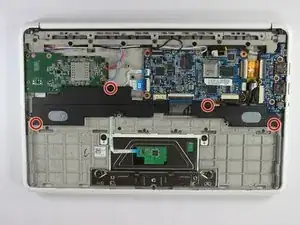

Disconnect the black wire connecting the speaker to the motherboard with caution.
-
To reassemble your device, follow these instructions in reverse order.
