This guide outlines how to remove the fan of an HP Chromebook x360 14c-ca0053. The fan functions to prevent the device from overheating, but it is fragile and susceptible to damage. If the device is overheating or making a whining sound, the fan likely needs to be replaced.
-
-
Use tweezers to apply light pressure on the outer sides of the 2 small screw covers located near the bottom of the device.
-
Rotate the covers until they pop up out of the screw socket enough to remove them with tweezers.
-
-
-
Use tweezers to peel back the feet on the top and bottom of the Chromebook to reveal four additional screws.
-
-
-
Use a Phillips #1 screwdriver to remove the 4 7 mm screws located at each corner of the device under the grips.
-
-
-
Insert an opening pick between lower case and chassis.
-
Separate the lower case from the frame by sliding the opening pick along the perimeter until the case releases.
-
-
-
Open the tweezers wide enough to fit on each side of motherboard battery connection.
-
Pull the connector directly out of its socket.
-
-
-

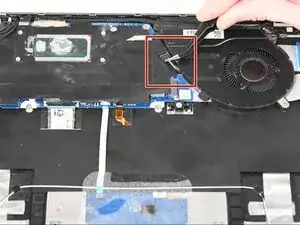

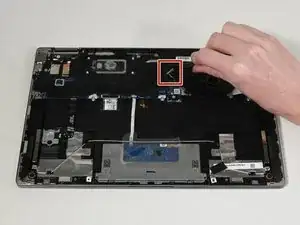

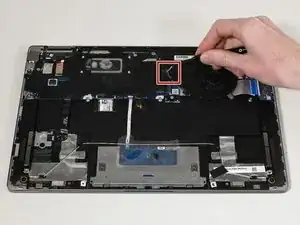

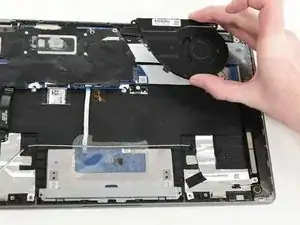

Place the tweezers gently underneath the fan's motherboard connection and lift up to disconnect it.
-
To reassemble your device, follow these instructions in reverse order.
