Introduzione

Use this guide to replace the keyboard on a HP EliteBook 840 G7

  1. ucM3behWmpYyIT6p
    • Turn the laptop on its back.

  2. 6u3HMJobmWWkrrAN
    • Use the Phillips # 1 screwdriver to remove the five 1.2 mm screws from the back cover of the laptop.

  3. dDSepiSZuRHfj1gf
    • Remove the back cover to expose the hardware.

  4. SRAvgNvW1VZkgkZR
    SRAvgNvW1VZkgkZR
    jncbWlfOTroIdqCo
    vKgxC3guLhwv6Tia
    • Use your Phillips #1 screwdriver and remove the four 1.2 mm screws that secures the battery into place.

    • Remove the connector that connects the battery to the motherboard.

  5. JK55dFaDSufpEedR
    JK55dFaDSufpEedR
    dNLPsXMQtok3EH3C
    FWAXiRrI65bpbTNW
    • Lift up the battery with you hands or tools.

  6. GEh363K3mMwR3DW4
    GEh363K3mMwR3DW4
    GVMIWVRl33tL1iUU
    • Pull up to remove the two coaxial Wi-Fi card connectors.

  7. 4lCtgFM4DKvDRt5K
    4lCtgFM4DKvDRt5K
    1bDUStnryZIJKGw6
    • Pull upwards on the display connector to remove.

  8. VXvZNcG6gHZTUIi6
    VXvZNcG6gHZTUIi6
    Wod6UEpMKUZSDnXU
    • Pull or push to remove the bundled cable connector.

  9. SlGKVpnYWDrmFEae
    SlGKVpnYWDrmFEae
    5egUpFqQYdD2SwMa
    • Pull upwards to remove the webcam connector.

  10. SQJSCAeLPXmiRYQY
    • Once you've disconnected all cables from their sockets, gently move them to the top of the laptop.

  11. c6WJxGFetgh4hWZM
    c6WJxGFetgh4hWZM
    3xLa4SZrakfMcsOf
    • Use your Phillips # 1 screwdriver to remove the four 1.2 mm screws.

  12. WXEPDoCtQkevD5Qf
    WXEPDoCtQkevD5Qf
    yV3VJovfrDoEK3CR
    • Use your Phillips # 1 screwdriver to remove the two 1.2mm screws.

  13. lZfeGonV3aJ2PZKb
    lZfeGonV3aJ2PZKb
    NL2mYkkEpNA6FIeb
    SK2MUQN5hsn4YJRC
    • Open the laptop to a 90 degree angle.

    • Slide the display hinges away to remove the display assembly.

  14. NIFL2woDw3Cb5UXH
    NIFL2woDw3Cb5UXH
    kf2lbwVqhvLWEGFV
    mXnUIUjyxN1Ulq1o
    • Pull on the bundled connector to remove.

    • Remove the speaker system from the board.

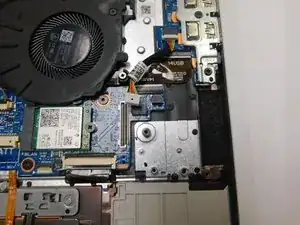

  15. lXiuJmBX3Z3UAENK
    lXiuJmBX3Z3UAENK
    qOWk24nKpPdwDEZI
    • Push away to remove the bundled connector from its port.

    • Move the cable away from the ZIF connector below.

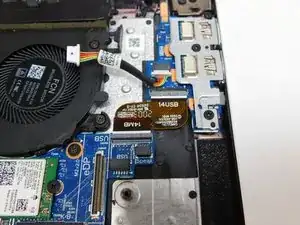

  16. AMULGH3kF3aLRRHV
    AMULGH3kF3aLRRHV
    NSLZ6IhTvNxfn4Bg
    tHjyrMBUqAJXeAHt
    • Lift the latch on the ZIF connector.

    • Pull away on the connector to remove.

  17. iVdxAVmrmWJYNXFK
    iVdxAVmrmWJYNXFK
    klSwwlFDQgMtpKBx
    RMNWDL4ixxhExOeT
    • Use your Phillips #1 screwdriver to remove the three 1.3 mm screws.

    • Lift up and away to remove the USB ports.

  18. ksEKwtDVabvW5ocO
    ksEKwtDVabvW5ocO
    vZbQHkIFvjZF5OcY
    • Push away to remove the bundled connector.

  19. rcU1tW6mMs3KfodS
    rcU1tW6mMs3KfodS
    GHFPKbPALCDrAmex
    yxDEFHyZvQiunXag
    • Use your Phillips # 1 screwdriver to remove the three 1.2 mm screws that hold the fan in place.

    • Lift up from the left side of the fan then pull towards you to remove.

  20. BuVXrJBFHcBVbUug
    BuVXrJBFHcBVbUug
    ko1lASgMVMsYDIlV
    aOypgZDgC6prHKCo
    • Pull on the bundled connector to remove.

    • After removing the connector pull off the CMOS battery.

  21. oAMaB3YA1jmYJmru
    oAMaB3YA1jmYJmru
    PcGKXilArJQAdniW
    i1JOoCuHbNeGnDvB
    • Use your Phillips #1 screwdriver to remove the single 1.2 mm screw.

    • Pull on the cable to remove the charging port.

  22. BY6GgRiwEcaK3FIY
    BY6GgRiwEcaK3FIY
    gOPVduCZJkYewYrk
    Ad5PMBbcNvD5EE6O
    • Lift on the latch on the ZIF connector.

    • Pull on the cable to remove.

  23. rwIwccYtturpvNbw
    rwIwccYtturpvNbw
    6GafbMSFnkesDFX1
    xmDYcIPTFUIVjsmQ
    • Release the latch on the ZIF connector.

    • Carefully pull the connector to remove.

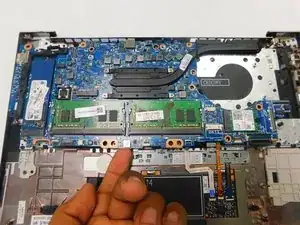

  24. MFIwbSpHCtanwXZb
    MFIwbSpHCtanwXZb
    Bq4OpdSGJ1rFi2PL
    IBKNcsWshUsvLTex
    • Use you Phillips #1 screwdriver to remove the eight 1.2 mm screws.

    • Lift the whole board up to remove.

  25. lkAHtvP5oBTlqYTS
    lkAHtvP5oBTlqYTS
    Znx2b6yyNlG5VXNq
    BcWlsAZmG2SrnbIT
    • Lift the latch on the ZIF connector.

    • Pull on the cable to remove.

  26. MoZFujVsnCEc51nJ
    MoZFujVsnCEc51nJ
    rqHNRe13TuQSWND3
    KmwThnWrIMoa2FSW
    • Lift the latch on the ZIF connector.

    • Pull on the cable to remove.

  27. Tty6ObtqEKcqGidt
    Tty6ObtqEKcqGidt
    NKbfieTnNcyGcdVC
    QSZYIwZPbldR4kVy
    • Use your Phillips #000 screwdriver to remove the four 1 mm screws.

    • Pull up to remove.

    • Careful to not harm other cables.

  28. JdPyTaOQgpoduUyP
    JdPyTaOQgpoduUyP
    rh6BCQEHT3CYxQZp
    MS3euRVnobIg5uL4
    • Use your Phillips #000 screwdriver to remove the five 1 mm screws.

    • Lift the touchpad to remove.

    I don't get it. These instructions are bad. Where's the keyboard? Where does it say, "Then you can remove the keyboard?" Which step is that? Step 14 is entitled "Keyboard," but it doesn't say anything about the keyboard

    Bill IT -

Conclusione

To reassemble your device, follow these instructions in reverse order.

Pedro Ramos Espinoza

Membro da: 10/02/22

790 Reputazione

3 commenti

Donc ce tuto permet de tout enlever sauf le clavier?

Pilc -

This is only replacement of the touchpad?

Where is the keyboard replacement?

Koehoe22 -

the keyboard is part of the top shell and is rivetted in, you need to replace the whole part

Leonardo Di Stefano -
