Introduzione

Your keyboard is an important part of your computer, so when it's not working properly and responding the way you're used to, it's only natural that you want to replace it as soon as possible.

On a desktop computer, if the keyboard is completely unresponsive, it will definitely need to be replaced.

However, keyboard problems can physical or digital via drivers. Windows and your keyboard may have a complicated relationship, and if your keyboard has multimedia buttons to adjust the volume or open web pages, you probably have specific software installed called a keyboard driver. If the controller fails, the keyboard will not work properly - but this is not a sign that the keyboard needs to be replaced. Downloading a new keyboard driver from the manufacturer's website will solve most problems. You don't need a new keyboard for this, just new software.

  1. ifquqQRRuvDwv6OI
    ifquqQRRuvDwv6OI
    ofq4sGdWgWV1CWci
    dfL5jwQc6SujGsvD
    • Flip laptop over.

  2. kUh1pBVidgjLiEnh
    kUh1pBVidgjLiEnh
    ActmXMxdMOBpybek

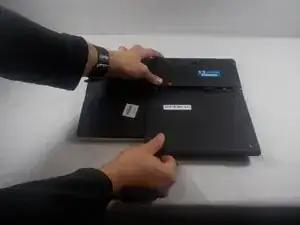

    • Remove battery by pushing slide over to red, lifting slightly up while pulling the battery out.

  3. wZbEJwj4HLaVHPJh
    wZbEJwj4HLaVHPJh
    VVylKHHSewUHPH3y
    c4NmytUiEJWFnNVW
    • Remove hard drive cover plate by unscrewing the 2 Phillips head screws and lifting slightly up and out.

  4. vMly6IPYCNgbgHhE
    vMly6IPYCNgbgHhE
    NrG42nJCJJO2GITs
    vuSrMI5vPw46vnWN

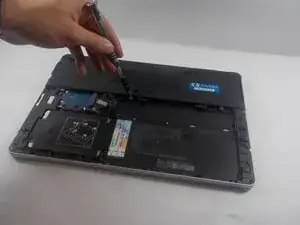

    • Remove back cover by unscrewing the 3 Phillips head screws, then lift the plate up and out.

    There are two more small black Philips to be loosened to do this. They are present on the picture.

    Tonje Ailin Solheim -

  5. SqAlDNQvIAoJCoLl
    • Remove the 4 Phillips head keyboard screws.

    • The screws are also marked with small keyboard icons to distinguish them.

  6. hcZXLPyKXrpj6GkS
    hcZXLPyKXrpj6GkS
    4a3ZwyPHNEKAZpQ4
    wGZRIWIkVw21O1vC
    • Flip the laptop over and locate the 2 tabs on the left or right sides. They will be slightly visible in the space between the keyboard and frame.

    • Using a plastic opening tool, push the tabs in while pulling up to disconnect the tabs from the keyboard frame.

    • Once both tabs become unclipped, lift the keyboard up gently allowing it to slightly bend as the front and back tabs come out.

  7. OIuBK1bQsiqkqPAK
    OIuBK1bQsiqkqPAK
    Sqf1YU2yfLZTybgB
    • While lifting the keyboard up only enough to see underneath, unclip and remove the ribbon wire to fully detach the keyboard.

    What about the two ribbons on the right not attached at the picture?

    Tonje Ailin Solheim -

Conclusione

To reassemble your device, follow these instructions in reverse order.

Kenneth Bowers

Membro da: 08/04/16

1381 Reputazione

0 commenti
