HP Pavilion p6 Wireless Card Replacement

Scritto Da: Oli
  • Commenti: 0
HP Pavilion p6 Wireless Card Replacement

Difficoltà

Easy

Passi

4

Tempo Necessario

10 - 20 minuti

Introduzione

How to remove and replace a faulty wireless card on a HP Pavilion p6 desktop computer.

  1. oCiGUYQy6RcgEt1q
    oCiGUYQy6RcgEt1q
    vOZKdmjfCcWIJhX4
    DFTN3JFVCA3cJmLh

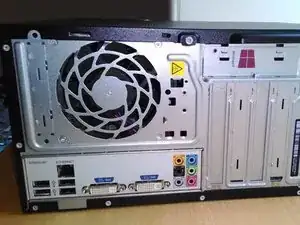

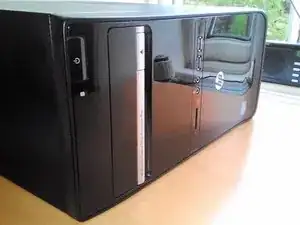

    • Before you start make sure that all of the leads have been disconnected from the computer.

    • It is strongly recomended to wait at least 15 minutes after turning it off to allow the computer and internal components to cool down.

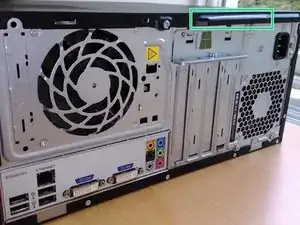

    • It is recomended to lay the computer down with the pull tab at the top to allow it to be easily opened.

    • It is also worth mentioning at this point that for complete safety when working inside the computer that wearing an anti-static band and touching a grounded metal object before starting is good practice.

  2. IjGRSUULfXRGPg3s
    IjGRSUULfXRGPg3s
    kFcYWeswDHGtcI32
    U1TJbR46a2kLXWwT

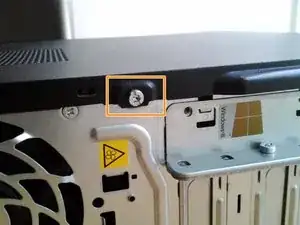

    • In order to remove the side panel a single screw needs to first be removed.

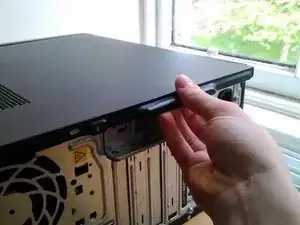

    • The side panel can then be pulled towards the back of the computer using the pull tab provided.

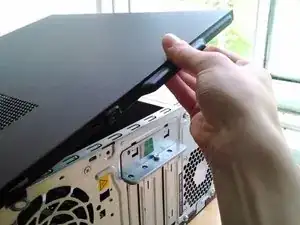

    • The panel then needs to be rotated as showen in order to remove it from the computer.

  3. jQpVDA6Uo1LHM5tc
    jQpVDA6Uo1LHM5tc
    xYBtpXcb6YZsE6Jx
    QtUkB4PpIx6bU5wk

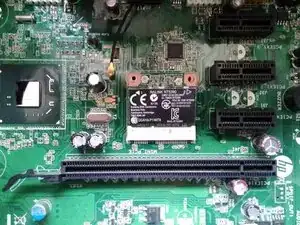

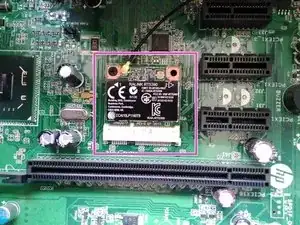

    • First locate the wireless card, it should look like this.

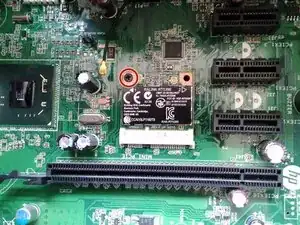

    • Next using a spudger or equivalent carefully pry the antenna cable off the wireless card, it should now look like the second picture.

    • A single screw then needs to be removed in order to free the card.

  4. lQlFveQTT6STCqAK
    lQlFveQTT6STCqAK
    wGDotq1Nfq2Kcjvr

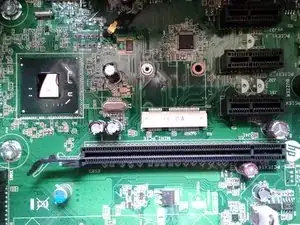

    • The card can then just be easily removed by pulling it out and up.

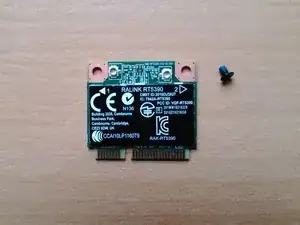

    • The wireless card should then be kept in a safe place and care taken not to lose the small screw that goes with it.

Conclusione

To reassemble your device, follow these instructions in reverse order.
