HP Pavilion x360 11-p110nr Speakers Replacement

Scritto Da: Aeorrell
  • Commenti: 0
HP Pavilion x360 11-p110nr Speakers Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

5 - 15 minuti

Introduzione

This guide helps you to replace your speakers on your HP laptop using only a screwdriver, tweezers, and the replacement part. The entire process is fairly quick and easy, and with a bit of care, it can be completed safely at home.


Caution: Anytime you are working with batteries or power, be sure to take care around the electricity and always unplug the battery before you attempt to replace the port.

  1. 6JAPrT6DQi2csNHT
    6JAPrT6DQi2csNHT
    GWrhYgCjaHREeYmJ
    JdiORHZJArfGQHMo

    • Eleven case screws are located on the bottom of the laptop. Two will be underneath the rubber feet.

    • Use a Phillips #0 screwdriver to remove all 6.7 mm screws from the bottom cover.

    • Carefully take the bottom cover off.

    • Don't force the bottom plate off. There will be a cable connecting the bottom plate to the rest of the laptop. If you pull too hard you risk damaging this cable.

  2. c41oeUdAGQrcELmb
    c41oeUdAGQrcELmb
    f1nAOgEHZGNkw2eF
    wJtd51tdfdZcBJDN

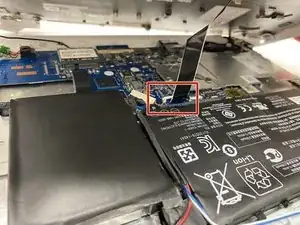

    • Before fully removing the top cover, locate the cable that connects the audio controls.

    • Once located, lift the small black flap and carefully pull the cable out.

  3. aTmIud1F1cVETYxd
    aTmIud1F1cVETYxd
    VVDmJ1Ayaqsei6CQ
    iqomaGZRT3GSDBYc

    • Remove the large cable connecting the battery to the main board

    • Caution: Lithium Ion batteries provide a risk of electrocution or fire if mishandled. Failure to disconnect the battery before removing the speakers could also lead to risk of electrocution.

  4. JrViYntYsS1expqR
    JrViYntYsS1expqR
    pHEpaYAHXJCccSSW
    pW4MN2Iv2WRxFwTD

    • Locate the cable for the speakers and unplug, as shown.

    • If needed, use the tweezers to gently remove the cable from its connector.

  5. wlpTIgoqWTKl4MxK
    wlpTIgoqWTKl4MxK
    ftgpVFepYcD4iRTJ
    VsYLXsVSyBLbVKJC

    • Use a Phillips #0 screwdriver to remove the four 5.8 mm screws from the speakers.

    • The speakers are now not secured to the laptop.

  6. EA2MaQgQ3RA6IiRn
    EA2MaQgQ3RA6IiRn
    oMCgjRayQBmBtZRV
    oMXPAvY4hMVurTFC

    • Lift each speaker out of the laptop.

    • Carefully remove each speaker.

    • The speakers are connected to each other by a wire.

Conclusione

To reassemble your device, follow these instructions in reverse order.
