HP Photosmart 935 LCD Screen Replacement

Scritto Da: Nick Oleskowicz
  • Commenti: 1
HP Photosmart 935 LCD Screen Replacement

Difficoltà

Moderate

Passi

17

Tempo Necessario

20 - 30 minuti

Introduzione

The purpose of this guide is to teach reader to install a new LCD screen. If the current LCD screen is broken or cracked, this guide will help the reader to replace it with a new one.

  1. pcUmacIwYDEKaeKJ
    pcUmacIwYDEKaeKJ
    vhLIWCAVkl1jaFww

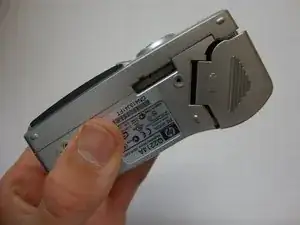

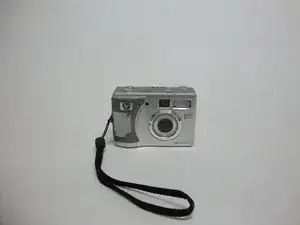

    • Flip the camera over so the bottom of the camera is facing you.

    • Turn the mode dial to the OFF position.

  3. EqOxGSDrkZKj1VRR
    EqOxGSDrkZKj1VRR
    TNSOidZtgfwg3wTM

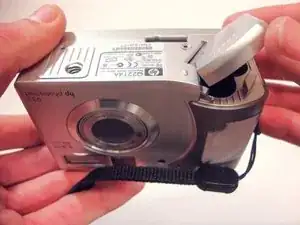

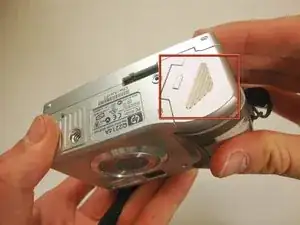

    • Slide the bottom cover in the direction of the arrow to open it.

  4. M3nae2bVbub2r5CO

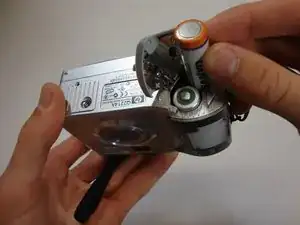

    • Pull out the batteries.

  5. 4l3B1wiQVUUnt24e

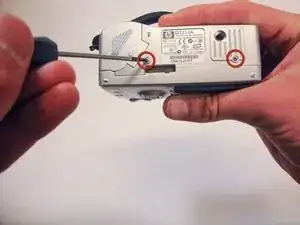

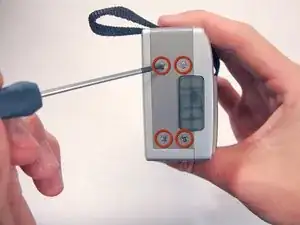

    • Use a Phillips #00 screwdriver to remove the two 4.7 mm screws in the bottom of the plastic casing.

  6. EtUv1xytV3EHFDW6
    EtUv1xytV3EHFDW6
    1rAiJRqw4DpUgHCR

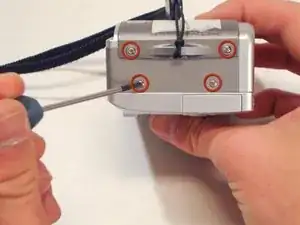

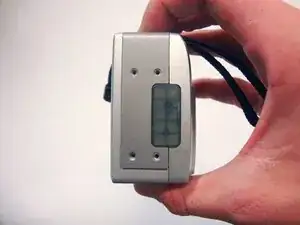

    • Remove the four 4.7 mm screws on the left side of the camera.

  7. BW1nqe1eK3BEhBg1
    BW1nqe1eK3BEhBg1
    CPFkySUkhsRYZmfU

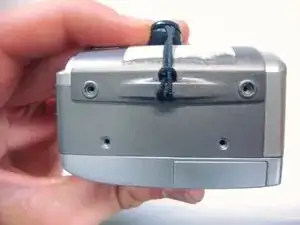

    • Remove the four 4.7 mm screws on the opposite side of the camera.

  8. GFCuVopd1cukUFvO
    GFCuVopd1cukUFvO
    WGVFniuVGCD4pX2a
    W4QkWtLS6Pchm1ER

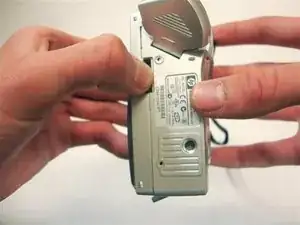

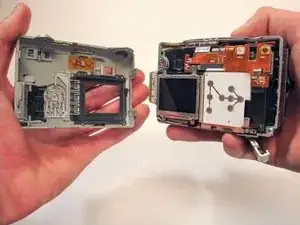

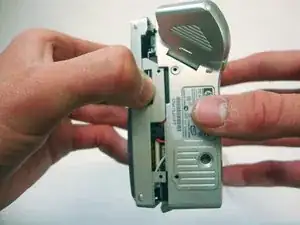

    • Use your thumbs to pry the case apart.

    • It is easiest to pry the case apart if you start at the bottom.

    • The case should come apart with minimal effort. If it doesn't, you can use a spudger or plastic opening tool to pry it open.

  9. 5ShJH21JHb2n2aSa

    • This step requires a significant amount of force.

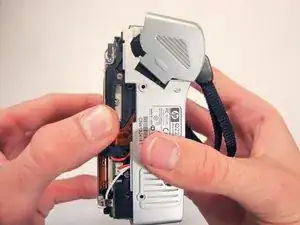

    • Pull the bottom half of the inner camera out of the case by half an inch. This may be difficult.

  10. TQQlM5ipUoRaOBUZ
    TQQlM5ipUoRaOBUZ
    JYiNvCPXvMwlgAGi

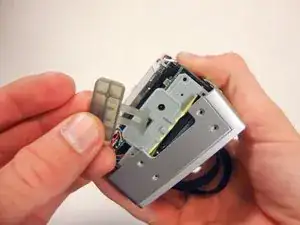

    • While pulling the camera out of the case, note the small soft plastic cover on the side. This cover will detach from the rest of the device.

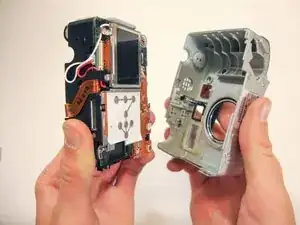

    • Once the bottom of the inner camera is pulled out, pull the device out completely.

    • Use a firm grasp when removing the device from the case for stability and control.

  11. pORbmX6kK2IZjyBq

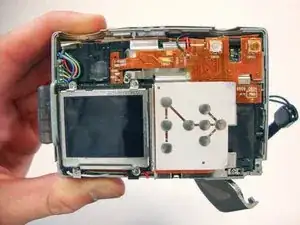

    • Orient the camera so that the LCD screen is facing you.

    • If case is still on, remove it by following the Plastic Casing Installation Guide found in the previous steps.

    • Removing the casing completely is crucial to completing this guide.

  12. RCSvGUjKrY5y3BAl
    RCSvGUjKrY5y3BAl
    1ZJ31fiYVMntVQnc

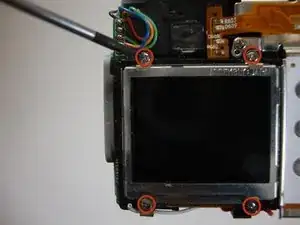

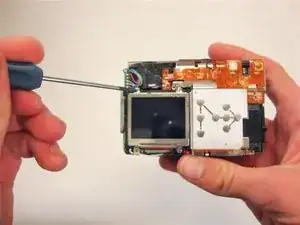

    • Using a Phillips #00 remove the four 4.40 mm screws that secure the LCD screen to the frame.

  13. 3KtAQYbkgwW1G2nm

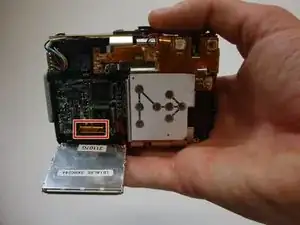

    • Allow the LCD screen to flip down. This will expose the electric strip that connects the screen to the camera.

  14. JQepbYBwNTW2e4uQ

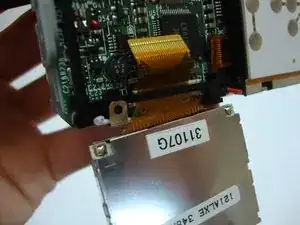

    • Look for where the yellow electric strip is attached to the camera. You will find a plastic grey bar and a white base holding this strip in place.

    • Push the grey bar away from the white base. This will release the yellow electric strip and free the LCD screen from the camera.

  15. MvPTgBQ2hVQOAZG3

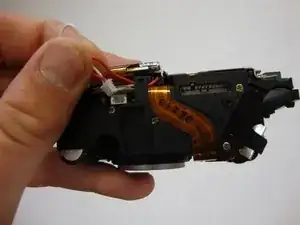

    • Unplug the connected red and white wires. They will come out with the small white casing.

  16. Clr3McPRhLeEErpi

    • Flip camera so that the lens is facing away from you. You should be looking at the LCD screen.

  17. hlAePlpNAntse365
    hlAePlpNAntse365
    Kds6lXNOZTQGwViu

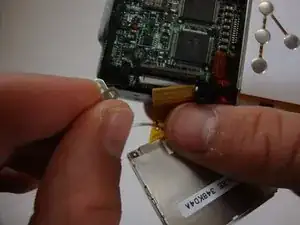

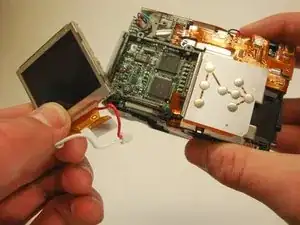

    • Remove the bottom left LCD mounting frame screw. The screen should come loose after the screw is removed.

    • Remove the LCD screen from the camera. Make sure that the electric strip comes out with screen.

Conclusione

To reassemble your device, follow these instructions in reverse order.
