HP Photosmart 935 Plastic Casing Replacement

Scritto Da: Clay Young
  • Commenti: 0
HP Photosmart 935 Plastic Casing Replacement

Difficoltà

Easy

Passi

10

Tempo Necessario

5 minuti

Introduzione

This guide will teach you how to install a new case on your HP Photosmart 935 camera. If your camera case is cracked or starting to come apart, this guide will help you replace it with a new one.

  1. pcUmacIwYDEKaeKJ
    pcUmacIwYDEKaeKJ
    vhLIWCAVkl1jaFww

    • Flip the camera over so the bottom of the camera is facing you.

    • Turn the mode dial to the OFF position.

  3. EqOxGSDrkZKj1VRR
    EqOxGSDrkZKj1VRR
    TNSOidZtgfwg3wTM

    • Slide the bottom cover in the direction of the arrow to open it.

  4. M3nae2bVbub2r5CO

    • Pull out the batteries.

  5. 4l3B1wiQVUUnt24e

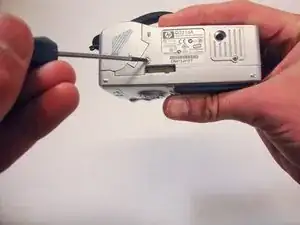

    • Use a Phillips #00 screwdriver to remove the two 4.7 mm screws in the bottom of the plastic casing.

  6. EtUv1xytV3EHFDW6
    EtUv1xytV3EHFDW6
    1rAiJRqw4DpUgHCR

    • Remove the four 4.7 mm screws on the left side of the camera.

  7. BW1nqe1eK3BEhBg1
    BW1nqe1eK3BEhBg1
    CPFkySUkhsRYZmfU

    • Remove the four 4.7 mm screws on the opposite side of the camera.

  8. GFCuVopd1cukUFvO
    GFCuVopd1cukUFvO
    WGVFniuVGCD4pX2a
    W4QkWtLS6Pchm1ER

    • Use your thumbs to pry the case apart.

    • It is easiest to pry the case apart if you start at the bottom.

    • The case should come apart with minimal effort. If it doesn't, you can use a spudger or plastic opening tool to pry it open.

  9. 5ShJH21JHb2n2aSa

    • This step requires a significant amount of force.

    • Pull the bottom half of the inner camera out of the case by half an inch. This may be difficult.

  10. TQQlM5ipUoRaOBUZ
    TQQlM5ipUoRaOBUZ
    JYiNvCPXvMwlgAGi

    • While pulling the camera out of the case, note the small soft plastic cover on the side. This cover will detach from the rest of the device.

    • Once the bottom of the inner camera is pulled out, pull the device out completely.

    • Use a firm grasp when removing the device from the case for stability and control.

Conclusione

To reassemble your device, follow these instructions in reverse order.
