HP ProBook 440 G1 Wifi Card Replacement

Scritto Da: Ethan A Courtney
  • Commenti: 0
HP ProBook 440 G1 Wifi Card Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

2 minuti

Introduzione

How to remove and replace the Wifi card on an HP ProBook 440 G1.

  1. fODLBkHedQBOnn5y
    fODLBkHedQBOnn5y
    SdWfSEGViRqauKGL

    • Make sure the laptop is turned off before you start.

    • Push and hold the release tab on the right and left toward the center.

  2. wAGEM1HCv1htPVMO
    wAGEM1HCv1htPVMO
    jwQJOY2ItQ3PXFPv

    • Pull the battery out.

  3. wobUa2ONdLJiYUCT
    wobUa2ONdLJiYUCT
    vUVfPXLRCWfOmJq3
    v15gpeynRq5VfdFu

    • Push and hold the release tabs on the right and left toward the center again.

  4. dsDxEjL5ONDoZEQQ

    • Slide the backplate off.

  5. REPbZSuoRwSogtJU
    REPbZSuoRwSogtJU
    B5WaXX2SyWard3r1

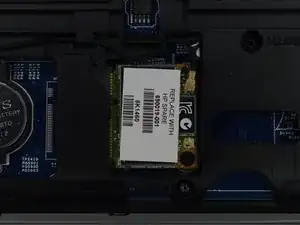

    • Locate the Wifi card, found opposite the battery and across from the hard drive.

  6. NhfQC5dGxNH2DZMR
    NhfQC5dGxNH2DZMR
    IB361emXkEiGJNn4

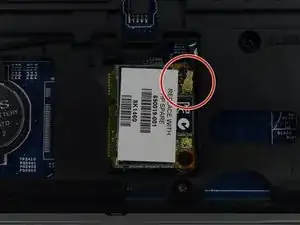

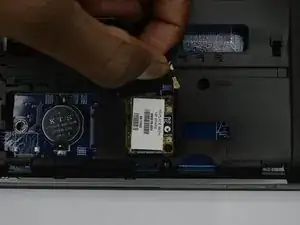

    • Remove the wire located near the screws on the wifi card.

  7. 2N1i5aYdwCYuU2Cf
    2N1i5aYdwCYuU2Cf
    lRmjQfoWERPgbB5X

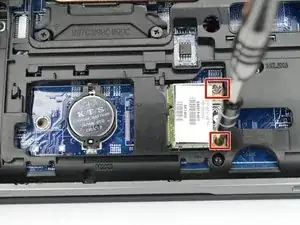

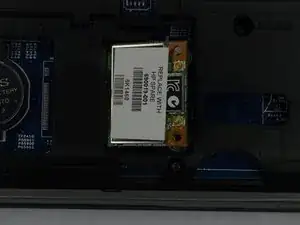

    • Remove the two Phillips #00 screws holding the wifi card in place.

  8. k1bcPEP3QWKdxFML

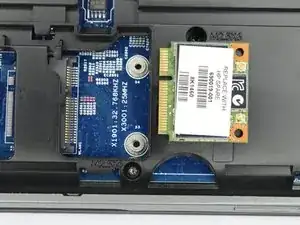

    • Remove the wifi card.

Conclusione

To reassemble your device, follow these instructions in reverse order.
