HTC Desire 610 Charging Port Replacement

Scritto Da: Kaycee Hammond
  • Commenti: 1
HTC Desire 610 Charging Port Replacement

Difficoltà

Moderate

Passi

11

Tempo Necessario

10 - 20 minuti

Introduzione

Has your HTC Desire 610 stopped charging and you know it's not a battery or charging cord issue? Follow these steps to replace a faulty charging port in an HTC Desire 610. In this guide you will learn how to take off the back, unscrew the circuit cover, and safely take out the charging port to replace with a new one.

  1. H4jVxnDvBTOMsZAn
    H4jVxnDvBTOMsZAn
    XpKiEGQ2ZgBaiV3T
    mGIncCYu4nvBWgqA

    • Using a plastic opening tool, take off the back cover of the phone.

  2. dBFjuiF4yFJtMpjd

    • Remove the four black 4mm torx screws using the Torx T5 bit.

  3. jkajd5FZH6IvTIxZ

    • Remove the four silver 5mm torx head screws using the Torx T5 screwdriver.

  4. M4sC2GFfXCLrXUcw

    • Remove the two 2.5mm phillips head screws using the Phillips 000 screwdriver.

  5. 56yrL2nDcS6GKI3S

    • Remove the black plastic circuit cover using a plastic opening tool.

  6. iaJGnZeHJHlDlXSG

    • Remove the 4mm black Torx screw using a Torx T5 screwdriver.

  7. usPfEyJ16N5PtUEU

    • Using a pair of tweezers, disconnect the antenna wire.

  8. tliQ6rWfSG5Ksf6d
    tliQ6rWfSG5Ksf6d
    ULXAVPhTTbgeOWvF
    ScuY31r1Ehxdjn6Y

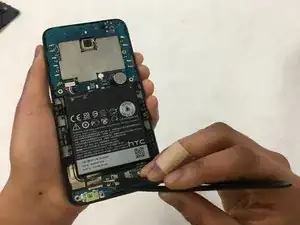

    • Peel back the gray adhesive strip using the precision tweezers.

  9. mEQJeAWovbuHbSIW

    • Pull up on the white strip so it sits 90 degrees using a pair of precision tweezers.

  10. 1TDUPKIjLCUuVVBG
    1TDUPKIjLCUuVVBG
    rxOxCaQMEWSRXtFk
    usgymSiePGJWO2f1

    • Pry up the circuit board and pull it out using a pair of precision tweezers.

  11. VnouONUHXRptiHK4
    VnouONUHXRptiHK4
    nRSWgusZIlpR11Ej
    PXfMlQRJwgQtJfJh

    • Remove the loud speaker using a pair of precision tweezers.

    • The loud speaker is attached with adhesive and may require more force than expected to remove.

    • The prongs on the speaker should be sticking up towards the top of the phone when you put the speaker on the new circuit board.

Conclusione

To reassemble your device, follow these instructions in reverse order.
