HTC Vive XR Elite Inner Plastic Frame Replacement

Scritto Da: Chayton Ritter
  • Commenti: 0
HTC Vive XR Elite Inner Plastic Frame Replacement

Difficoltà

Moderate

Passi

3

Tempo Necessario

Nessuna stima

Introduzione

  1. lfAGD5Zppv5wylYr
    lfAGD5Zppv5wylYr

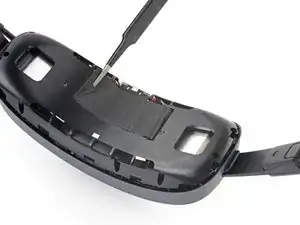

    3YJSURX6l4ahc4yk

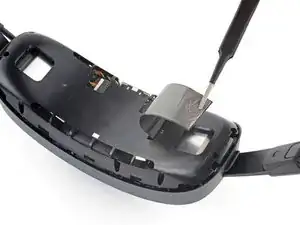

    V2KZqgEQ61rF2Tsv

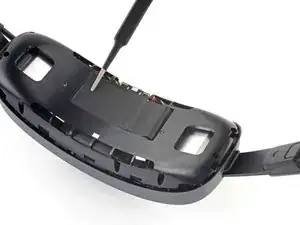

    • Use tweezers to peel back the graphite thermal tape covering the inner plastic frame.

    • If the tape tears a little, don't worry! During reassembly, stick it back in its original place as if it were still one piece

  2. 3TbRCHRBJ4ENNGIk
    3TbRCHRBJ4ENNGIk

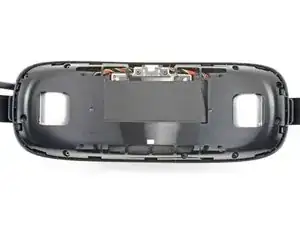

    V3vPHokOjk4NqJOB

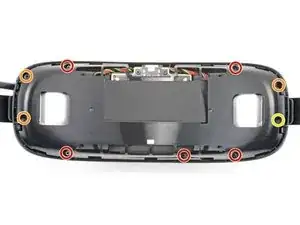

    • Use a T5 Torx screwdriver to remove the nine screws securing the inner plastic frame:

    • Five 11.8 mm-long screws

    • Three 5.6 mm-long screws

    • One 5.6 mm-long screw

    • This screw is covered by a piece of black plastic tape. Use tweezers to remove it before unscrewing.

    • Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from.

  3. ySlxRdG1nMKOBNiE
    ySlxRdG1nMKOBNiE
    2f1b1okGB5jmAFPt

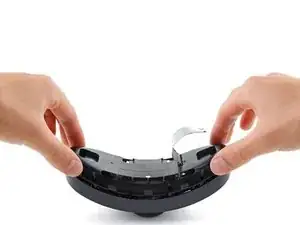

    • Remove the inner plastic frame, making sure to thread the graphite thermal tape through it.

Conclusione

To reassemble your device, follow these instructions in reverse order.
