Handspring Visor Edge Flip Cover Spring Replacement

Scritto Da: Blaize Steiger
  • Commenti: 0
Handspring Visor Edge Flip Cover Spring Replacement

Difficoltà

Easy

Passi

4

Tempo Necessario

3 - 7 minuti

Introduzione

  1. PJYjTFpMIcaE1hmk
    PJYjTFpMIcaE1hmk
    REDJDZkY2BjIjDlp

    • Open the Visor Edge and place it on a table facing down.

    • Gently push the tab that connects the flip cover (top half) to the PDA (bottom half) upward, lift the pieces apart to detach them.

    • Do not pull on the flip cover in an attempt to remove it from the PDA.

  2. mAAuUMu461HWJJN1

    • Once flip cover is removed, turn over and remove the four 3.9 mm screws connecting the hinge.

  3. fdoEB11UHJRYEmhQ
    fdoEB11UHJRYEmhQ
    41oNUUlZceG2cuJB

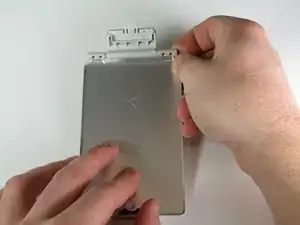

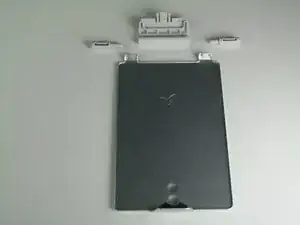

    • Gently pull away the plastic hinge from the cover.

    • Be careful to pull out evenly and not bend the plastic, as it can crack.The spring may also shoot out if it is not pulled out evenly.

  4. Tpsp3eaYQXl1p26H

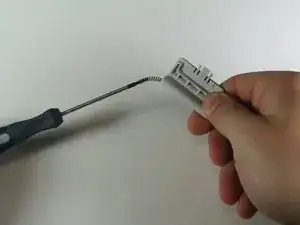

    • Turn the hinge piece on its side or use a screwdriver to pull out the spring.

    • Reinsert new spring.

Conclusione

To reassemble your device, follow these instructions in reverse order.
