Hisense Sero 7 Pro GPS Antenna Replacement

Scritto Da: Baochau Nguyen
  • Commenti: 0
Hisense Sero 7 Pro GPS Antenna Replacement

Difficoltà

Moderate

Passi

3

Tempo Necessario

Nessuna stima

Introduzione

This guide will assist the user in replacing the GPS antenna in the Hisense Sero 7 Pro tablet.

  1. sUuKXcRUNLH4aAUn
    sUuKXcRUNLH4aAUn
    ZDLhH5sFXCndRpqL

    • Turn tablet off before disassembling it.

    • Use caution when handling device if screen is cracked.

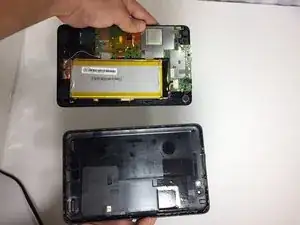

    • Using a plastic opening tool, pry open the back cover from the tablet.

    • An extra set of hands may be required.

  2. QPhUmaPmHQTQuCZG
    QPhUmaPmHQTQuCZG
    HXhgxNYva6gICpYw

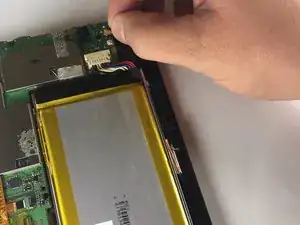

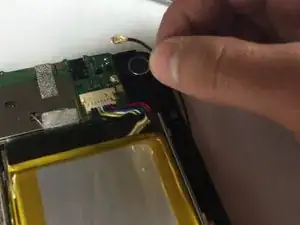

    • Pull the Wi-Fi antenna directly upwards to remove it from the motherboard.

    • Be gentle when disconnecting the antenna because it may damage the part it is attached to.

  3. fOA4xsrqBUwAEQfu
    fOA4xsrqBUwAEQfu
    R1aEnakEguUGavj1

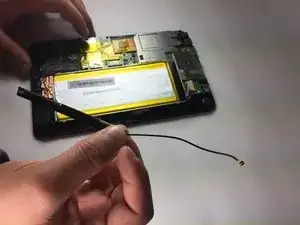

    • Insert a metal or nylon spudger on the edge of the GPS satellite and begin separating it from the adhesive.

    • Slowly peel the GPS from left to right as the GPS is clammy.

Conclusione

To reassemble your device, follow these instructions in reverse order.
