Hisense Sero 7 Pro Rear Camera Replacement

Difficoltà

Moderate

Passi

3

Tempo Necessario

Nessuna stima

Introduzione

  1. 6QCAJUg3XgoWNXAm
    6QCAJUg3XgoWNXAm
    lsblwjZlTsNJI3iA

    • Turn tablet off before dissembling it.

    • Use caution when handling device if screen is cracked.

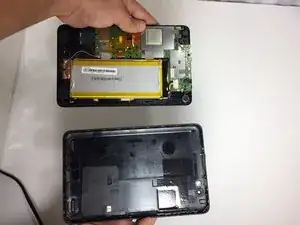

    • Using a plastic opening tool, pry open the back cover from the tablet.

    • An extra set of hands may be required.

  2. TvDLqAqLgBITdWVR

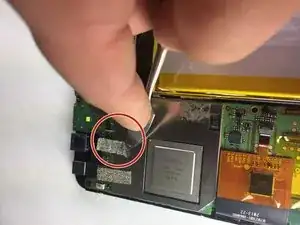

    • Using a metal or nylon spudger, begin to peel the tape from the motherboard that it is attached to the camera.

    • If needed, the same steps can be applied to front camera.

  3. C1wCD5l2555fcoec
    C1wCD5l2555fcoec
    HSnGAkSoyAhF34un
    nXTOlO2mD4rYGCSS

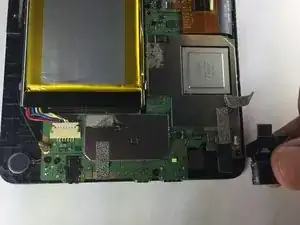

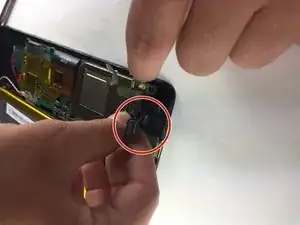

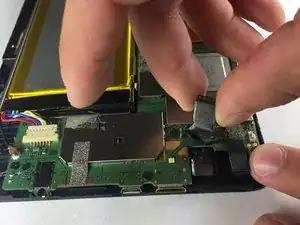

    • Pull the camera toward you to detach from the tablet.

    • Use caution when detaching camera from port.

Conclusione

To reassemble your device, follow these instructions in reverse order.
