How to Fix an Xbox One Controller Stuck Button

Scritto Da: iAmChrisBro
  • Commenti: 0
How to Fix an Xbox One Controller Stuck Button

Difficoltà

Moderate

Passi

10

Tempo Necessario

1 ora

Introduzione

This is a guide on how to fix stuck buttons on an Xbox One Controller. There are 10 steps in total that describe how to open up the controller and fix the stuck buttons. This guide should take roughly 1hr to complete.

  1. PxCpyJbSKG1Wi2b1
    PxCpyJbSKG1Wi2b1
    14gWMO22jl4uFGxr
    SZjclsSkT4GHoatq

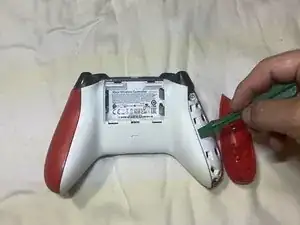

    • Use an opening tool to remove the back panels of the controller.

  2. H6uEGmQsfsnWxgk6
    H6uEGmQsfsnWxgk6
    tsJL2T1VRVCh1gT5
    OgtVBeEOmP3XLLpO

    • Remove the five screws from the back of the controller.

    • The 5th screw is behind the sticker in the battery compartment.

  3. CYYLPuZZVfQcpePU
    CYYLPuZZVfQcpePU
    wWPe2wEO5JEJyJCt
    LXPWpsq34uLq3T6n

    • Remove the front and back covers.

    • Remove the screws on the inside.

  4. 5Ho6iwTEwCVfG1V1
    5Ho6iwTEwCVfG1V1
    yaWBfTcTcyafcjCw
    KgxftY5HMhZ2Elfm

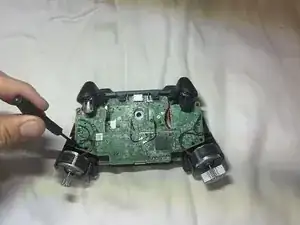

    • Remove the screws.

    • Flip the controller over and remove the joysticks.

  5. Gs4JHHjHDSWvbkAK
    Gs4JHHjHDSWvbkAK
    DpxEBQGoBOAoFAJw

    • Remove both screws near the trigger.

  6. BEDPfyi36U1YtWAn
    BEDPfyi36U1YtWAn
    SIRwDve32yDOWHZ6
    ki5iQpdxJPENOhHp

    • Remove the triggers to create more space.

    • Remove the screws holding the motherboard.

  7. j4YPYGuRfRO4tCGE
    j4YPYGuRfRO4tCGE
    OuoyRU54YfFHFJHn
    NqXpAkFqhGGqvqvQ

    • Remove the screws underneath the first chip board.

  8. G6ld2kBZ2lHYX6bU
    G6ld2kBZ2lHYX6bU
    OShw4MFqgOpBalEW
    H3LAW1yhUajWYlIO

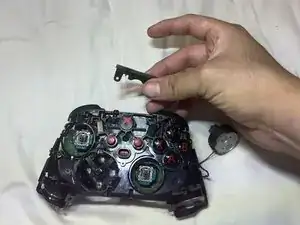

    • Remove all screws holding the motherboard.

    • Pry open the top of the controller to release the motherboard.

  9. yhTNSHntUhqlXPWV
    yhTNSHntUhqlXPWV
    UtMbGYagPq1uDsHp
    iCS3EgWijfhpkoQF

    • Remove the motherboard.

    • Remove the buttons.

  10. GdrAsFvyVSUGhr2e
    GdrAsFvyVSUGhr2e
    mWyEeGPELUCBDsxg
    BkvlaMOeKdpO5Snu

    • Clean the new buttons with rubbing alcohol for less friction.

    • Clean the controller frame holes.

Conclusione

To reassemble your device, follow these instructions in reverse order.
