How to Repair the Electrical Connections on a Little Tikes Motorized Bubble Mower.

Scritto Da: John Hiller
  • Commenti: 1
How to Repair the Electrical Connections on a Little Tikes Motorized Bubble Mower.

Difficoltà

Easy

Passi

13

Tempo Necessario

15 - 20 minuti

Introduzione

Using this guide you can fix this toy in 15-20 minutes without having to buy a new one. There are several tools you will need to fix this Little Tikes Bubble Mower. You will need a Philips screw driver size PH1, and a soldering tool. (If you don't know how to solder, look at iFixit's How to Solder and Desolder connections.)

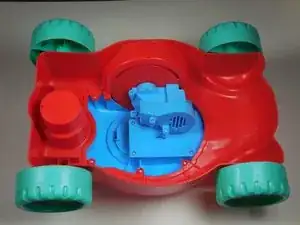

  1. FPiJeQqagWXFtO4K

    • Start with a flat, open space to work.

    thanks for sharing. <a href="https://www.gforceelectric.com/electrici...>Electrician’s advice on installing Task Lighting</a>'''

    JR Vitug -

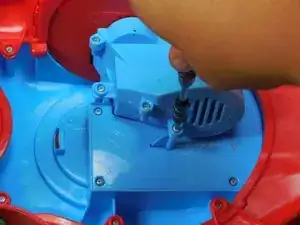

  2. ReZYHMMGlTvvWJgD
    ReZYHMMGlTvvWJgD
    edleSoOHJDOnZLlV

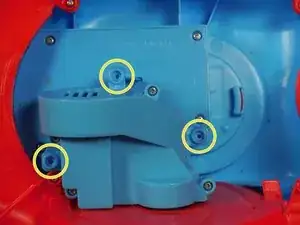

    • Unscrew these three 1.2 mm screws.

  3. sUCARPafg2l5JwDK

    • Remove the Bubble Sprocket from the motor.

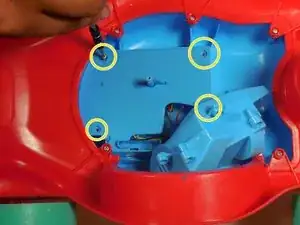

  4. GhCbRExwKPBlwLEC

    • Unscrew these four 1.2mm screws holding the plate on.

  5. aJGvCXoAPIWBtcXt

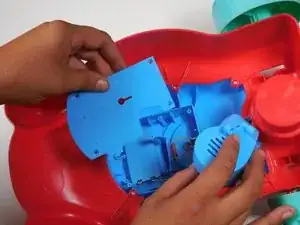

    • Remove the plate.

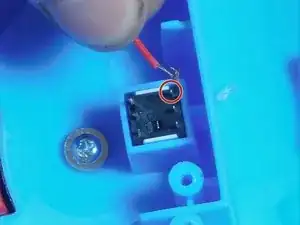

  6. UVDVSbeWdFNVHa5K

    • Connect the red wire to the top right pin.

  7. LaqZIdS2E3xQKnQg

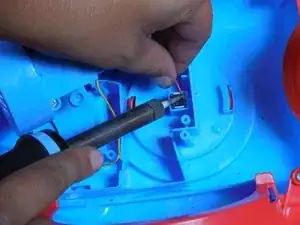

    • Solder the Red wire to the metal pin.

    • (Warning Soldering is very hot!)

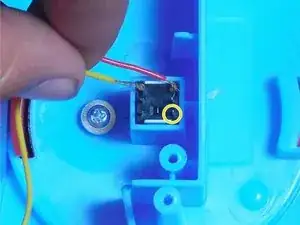

  8. FKK2HEM1QBA3ThHJ
    FKK2HEM1QBA3ThHJ
    KJgEnhJoJQMRCQWg

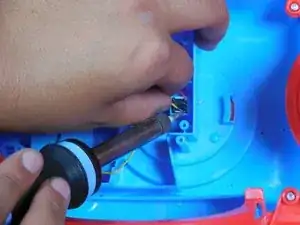

    • Connect the yellow wire to the bottom right pin.

    • Solder the yellow wire to the bottom right pin.

    • (Warning Soldering iron is very hot!)

  9. WQqwo6BtNr6VUTIk

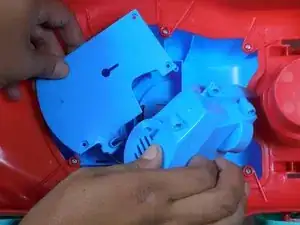

    • Replace the plate over the wires.

  10. QChqrNNAXdihCoew

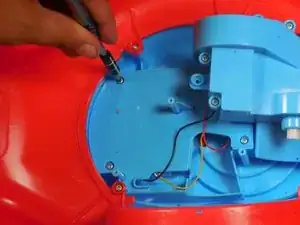

    • Put four 1.2 mm screws for the plate back into place.

  11. 4vaoOqTytvLXGwWW

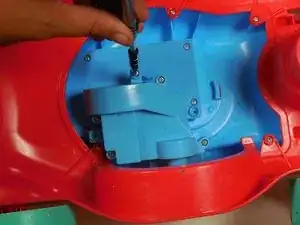

    • Put three 1.2mm screws for the motor back into place.

  12. KeKadqK5lxArMIjB

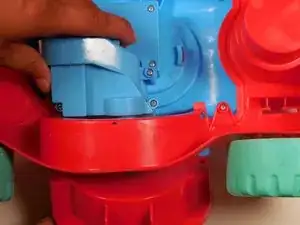

    • Insert the Bubble sprocket onto the motor.

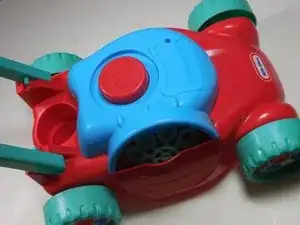

  13. fivvOLfuNqP2OybO

    • You are now finished!
