Introduzione

With digital clocks becoming more common, most people notice as time goes on, the numbers on the screen start to fade. They change the batteries but realize that the problem might be a result of the display screen being broken. Most people will just buy a new one but our guide will show how easy it is to replace the screen so your problem will be fixed and save you money.

In this guide, you will learn how to replace a BHG digital clock screen. We will show a step-by-step procedure on how to carefully open the clock using a Phillips screw and take out the old screen to replace it with a new one.

Before starting, get a new display screen for the Better Home & Garden clock.

  1. FBTqdebqwMcjaAIS
    FBTqdebqwMcjaAIS
    iBtidqMN1YtyKCMB

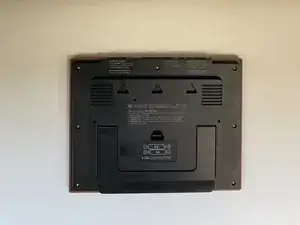

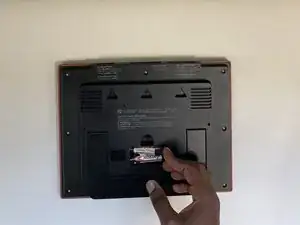

    • Remove the batteries from the back of the clock.

  2. ZvPvYCLT15AJKSgV
    ZvPvYCLT15AJKSgV
    ItR5OvQvFgCrmCnh
    6HmkFmutYlB4A4SX

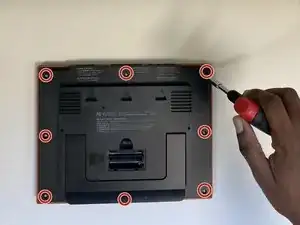

    • Unscrew the eight 10 mm Philips #1 screws in the back frame.

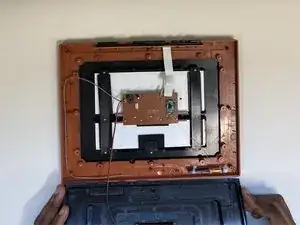

    • Remove the back frame.

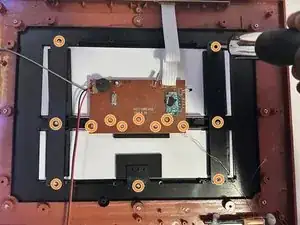

    • Take out the fourteen Phillips #0 8 mm screws on the circuit board and the plastic bars that hold the screens.

  3. aStuNNQxiOMQSuOm
    aStuNNQxiOMQSuOm
    LNCQBG1TCP1GCIrK
    TfP34WiNpSIujISB

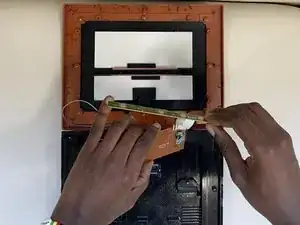

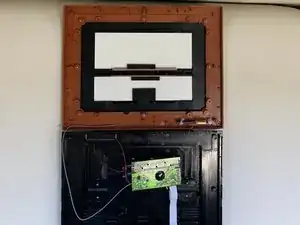

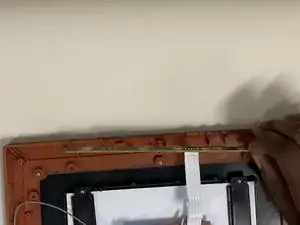

    • Carefully remove both the top and middle circuit boards together away from the screen.

  4. aYbfpVjTZQCBr6ME
    aYbfpVjTZQCBr6ME
    bG4TfHuETESkqcWy
    NTOJdaFNKPx3kCNU

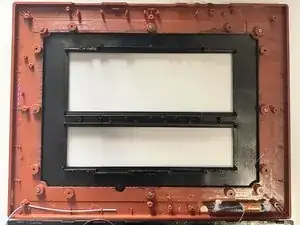

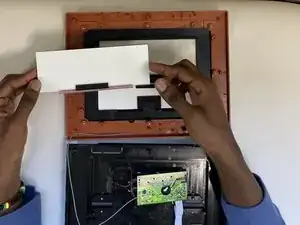

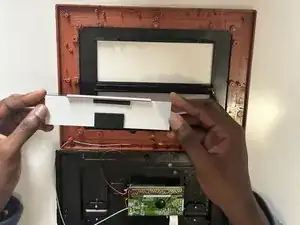

    • Remove display screen at the top and the bottom.

  5. 3ZGquwyu1XiIDdVX
    3ZGquwyu1XiIDdVX
    wT6dZgaKhYxyMfAR

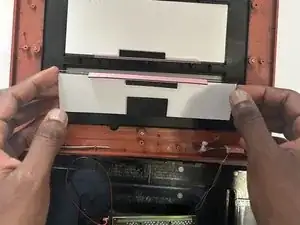

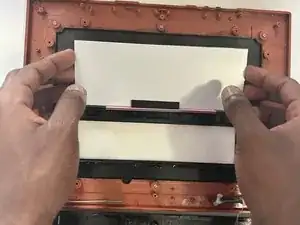

    • Place the new display screens on the clock.

  6. deR4AkyPL2EAQdTq
    deR4AkyPL2EAQdTq
    SSoLSdcmsWZOxxHg
    4LbKUICUEbBfaVVt

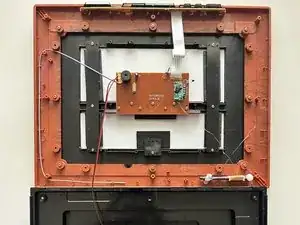

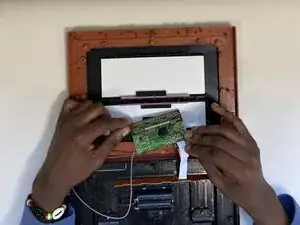

    • Align the circuit board to the pink rubbery connectors.

    • Screw everything back together.

Conclusione

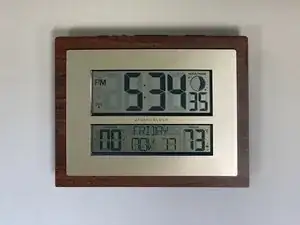

Insert batteries to see if the new display works correctly.
