How to Test and Replace the Rear Air Duct and Damper on your LG Refrigerator Model LFX25973

Scritto Da: Bill Gilbert
  • Commenti: 0
How to Test and Replace the Rear Air Duct and Damper on your LG Refrigerator Model LFX25973

Difficoltà

Moderate

Passi

13

Tempo Necessario

1 - 2 ore

Introduzione

Use this guide to test and replace the rear air duct and damper on your LG model LFX25973 refrigerator.

The rear air duct and damper allow cold air from the freezer evaporator to flow into the fresh food (refrigerator) compartment. The damper controls this flow and has a motor to control it.

If the damper malfunctions, the cooling of the refrigerator compartment will be affected: either too cold (damper stuck open) or too warm, (damper stuck shut).

  1. SaOfLbkeAxgmho5g

    • Unplug your refrigerator before you begin your repair.

    • If you are testing or repairing the following items, you may also need to shut off and disconnect the water supply:

    • Condenser Fan Motor

    • Compressor Motor and Thermal Overload Device

    • Water Supply Valve Assembly

  2. Go1kktiajsPNFQs4
    Go1kktiajsPNFQs4
    njmtdBTT4jfXDkUt
    OgSX5MTM1eVgCaHq

    • Open both refrigerator doors fully.

  3. RHaoJxwSdpC1kUni
    RHaoJxwSdpC1kUni
    P1in2SNQBnCSpJZD
    RiOJvHKNIuIoI6Mf

    • Lift up the front edge of the shelf to release it.

    • Unhook the shelf and remove it.

    • Repeat the last two steps for each shelf you wish to remove.

  4. 6DVIvIrT3AsDcNly
    6DVIvIrT3AsDcNly
    hlfmO4DTHxwjkkBr
    4hWYRT1SeZuini6S

    • Pull the crisper drawers toward you and tilt them up to remove them.

    • Pull the bottom drawer toward you and tilt it up to remove it.

  5. BeZYfBVuSMKrZrj3
    BeZYfBVuSMKrZrj3
    dmkVipPPmLU6memP

    • Lift the front edge of the drawer frame assembly to release it.

  6. bRZXJYmn2sPYmJFU
    bRZXJYmn2sPYmJFU
    LLOPPgnNAw56WwfK

    • Pull the drawer frame assembly toward you and remove it.

  7. X6dUYri326kDkhKi
    X6dUYri326kDkhKi
    P4UpCLOb6FpNaTRZ
    Q2DIQYOtXdHWbAem

    • Use a spudger to pry out the two center shelf bracket screw covers.

  8. kZjBktFKRQuEb3UC
    kZjBktFKRQuEb3UC
    TRTqAbl64DpXX1kG

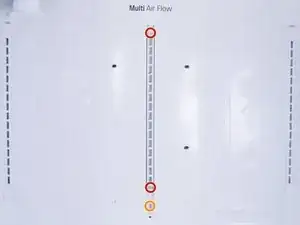

    • Use a Phillips screwdriver to remove the three screws securing the center shelf bracket and air duct:

    • Two 22.4 mm‑long screws

    • One 12 mm‑long screw

    • Remove the center shelf bracket.

  9. sOfT1KLupAHIGykb
    sOfT1KLupAHIGykb
    SGCmiySlYeDKI12b

    • Use a spudger to loosen one edge of the air duct.

  10. qoAFKbABZlCXdCeC
    qoAFKbABZlCXdCeC
    TAPZMdcjNGjCqZDD
    sqpgSY2TsaZK6YJO

    • Grasp the air duct and swing it outward.

    • Don't try to remove the air duct fully as it is still connected to the fridge.

    • Move the air duct so that you can access the connector at the bottom.

  11. SCDX2vyDIJHdnkoW
    SCDX2vyDIJHdnkoW
    kXXRgaN5toAXqPyo

    • Squeeze the connector and pull it straight out to disconnect it.

  12. 5fVVn1WqjHJLVPIM

    • Remove the air duct.

  13. 3JSuquwcbhRKB4Fq
    3JSuquwcbhRKB4Fq
    sGw1fGhrD6Z2bGZa
    pvy3gWsQkhtbBNTK

    • If you have a multimeter, you can test the damper motor for proper resistance.

    • Set the multimeter to the ohm setting.

    • Measure the resistance between:

    • The blue and white wires

    • The yellow and red wires

    • The normal resistance value is 373-456Ω for each pair.

    • If the values are out of this range, you can replace the whole assembly. Alternatively, you can cut the tape that holds the styrofoam duct together, remove the damper assembly, and replace it.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our  Answers community for help.
