IBM ThinkPad 560z Screen Replacement

Scritto Da: John Allande
  • Commenti: 0
IBM ThinkPad 560z Screen Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

5 - 15 minuti

Introduzione

This guide will demonstrate how to remove and replace the screen on an IBM ThinkPad 560z. A Phillips 00 screwdriver and a push pin are needed for this process.

  1. 31DPPCuVNwNdkTrg

    • Slide the battery release latch to the right.

    • Pull out the battery out towards the front of the device.

  2. upR3qhi5OcBR6OVf
    upR3qhi5OcBR6OVf
    REskALKCSVJn1NHC

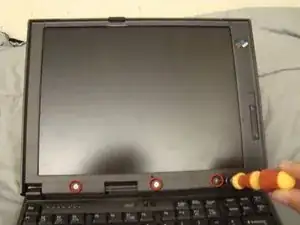

    • Remove the plastic screw covers, then remove the 3 Phillips screws under them.

  3. F6pFLoPjFbq1KZW3

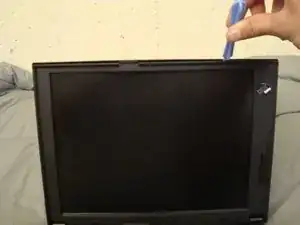

    • Insert the plastic opening tool between the front cover and back cover to pry open the screen case, then carefully pull the bezel off.

  4. SlWcGlJXQJiuMZ3G

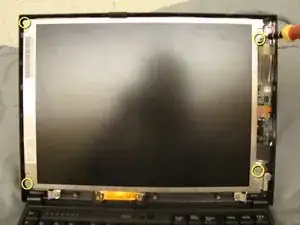

    • Remove the four Phillips head screws.

  5. AUlLyyZKYIcKkqOE

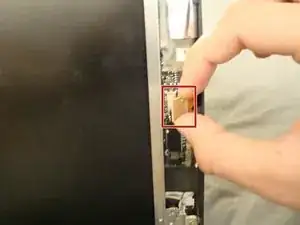

    • Using your fingers or an Opening Tool, detach the connector on the right side of the screen.

  6. E6FDI2IuSRft3seE
    E6FDI2IuSRft3seE
    nkdW4kbtHXhGvnEf

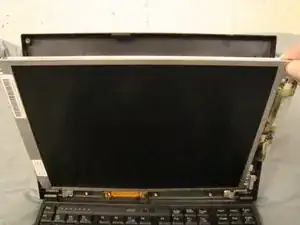

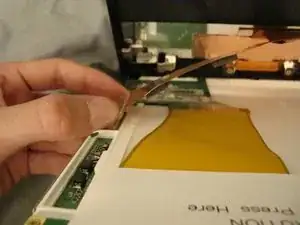

    • Slowly pull back the screen from the top and disconnect the ribbon cable from the back to completely free the screen from the laptop.

    • The connector is very fragile, so be careful.

Conclusione

To reassemble your device, follow these instructions in reverse order.
