IBM Thinkpad R40 Wi-Fi Card Replacement

Scritto Da: Erin
  • Commenti: 0
IBM Thinkpad R40 Wi-Fi Card Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

10 minuti

Introduzione

Use this guide to replace the Wi-Fi Card of the IBM Thinkpad R40.

  1. 1HFLKSLGaJLlOJnj

    • Use a screwdriver to remove the screws located at the bottom of the laptop, covering the battery pack.

  2. MTDlEHishpxLRrXA

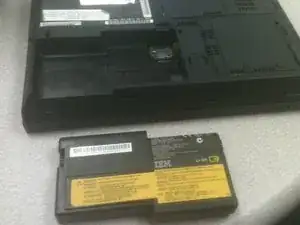

    • Remove the battery from the laptop and place it to the side.

  3. CNmjaOuhjEhvSi5e

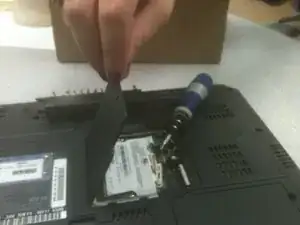

    • Loosen the screw covering the Wi-Fi card panel.

  4. Xwhe3VfpSiyo6cbY
    Xwhe3VfpSiyo6cbY
    AuZWS3kWpPoeyDLP

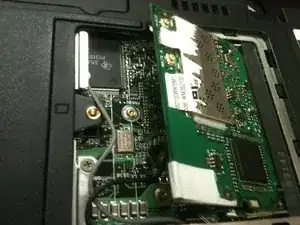

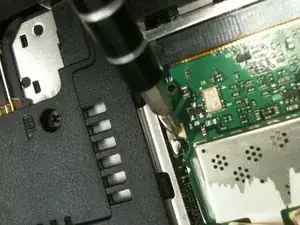

    • Open the now loosened section.

    • Release the clips that hold the Wi-Fi card in place.

    • Remove the Wi-Fi card.

Conclusione

To reassemble your device, follow these instructions in reverse order.
