Innioasis Y1 SD Card Replacement

Difficoltà

Moderate

Passi

3

Tempo Necessario

5 - 10 minuti

Introduzione

  1. cdECCToYdPjNOvuv
    cdECCToYdPjNOvuv
    ekHxk2uZXmiDiyx1
    1WV5texJmVRaBmoH

    • Use a pry tool and start half way up the left or right side of the MP3 player, working your way around the edge

    • Carefully lift the cover off and detach the connecting cable

  2. kOeDMBLfhZySkdWF

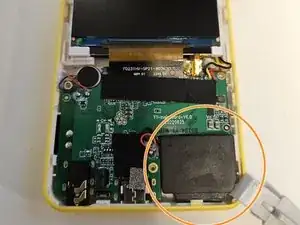

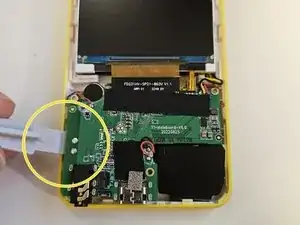

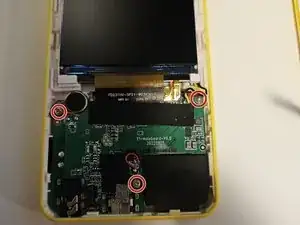

    kOeDMBLfhZySkdWF
    4HGeBwuKbLXZB63X
    yTqtDZTyucKoCLD4

    • Remove the 3 screws with a Philips #00

    • Carefully remove the Speak from its clasps with a pry tool

    • Carefully lift the board on the left side with the pry tool

  3. DKxAmq4ivsRFncaA

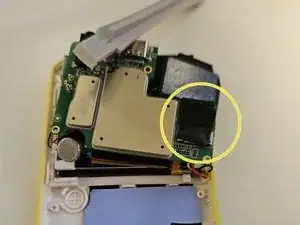

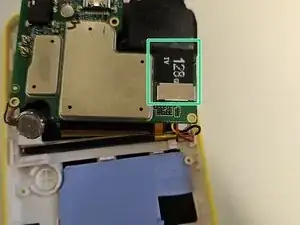

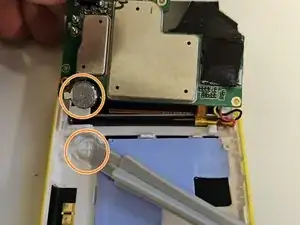

    DKxAmq4ivsRFncaA
    ZCjWZ2fxCEnp1pJk
    jjaqNvEeBmlQIyG1

    • Carefully Lift the board up and towards the screen. You may need to lightly pry the battery out of its socket

    • Remove the tape

    • Slide the Micro SD card out of the socket

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Dan

Membro da: 19/02/19

4180 Reputazione

2 commenti

Thanks for this tutorial Dan . I ordered this MP3 player as backup for my Ipod Classic. I have one question. Can I replace the SDcard with a one with more capacity? Like 256 or 512GB ? It will make me very happy. Second question. Is the battery replaceable with a bigger one? Or is there a lack of space,.

Thanks in advance and continue the good work. Regards from the Netherlands

P. Reuvers -

What is the best speed for the SD-card? Or is any U3 card good enough?

P. Reuvers -
