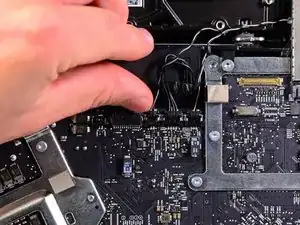

Estrarre il connettore del sensore temperatura del disco rigido verso il bordo superiore dell'iMac per scollegarlo dal connettore femmina sulla scheda logica.
-
-
-

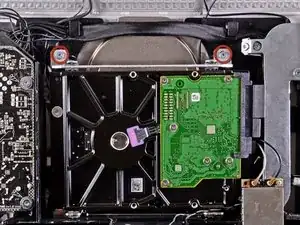

Rimuovere le due viti Torx T10 da 9 mm che fissano la staffa superiore del disco rigido al case esterno.
-
-
-

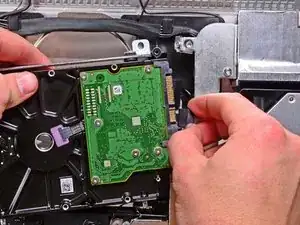

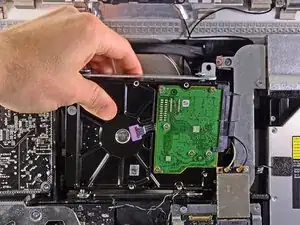

Ruotare leggermente il disco rigido dal case esterno e sollevarlo dai piedini di montaggio verso il bordo superiore dell'iMac.
-
-
-

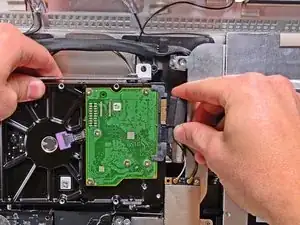

Scollegare i connettori SATA di alimentazione e dati dai rispettivi connettori femmina, estraendo ciascuno di essi dal disco rigido.
-
Conclusione
Per riassemblare il dispositivo, seguire queste istruzioni in ordine inverso.
