JBL Flip 3 Battery Replacement

Scritto Da: Lasse.gra
  • Commenti: 2
JBL Flip 3 Battery Replacement

Difficoltà

Difficult

Passi

5

Tempo Necessario

1 ora

Introduzione

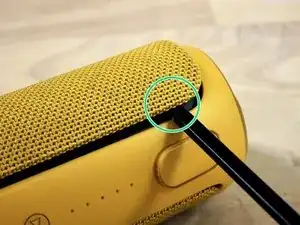

  1. dB1RcuoBmNQbdTPY
    dB1RcuoBmNQbdTPY
    BbWRrQ3QYhNfeyAE

    • Pry up the two tabs on one side.

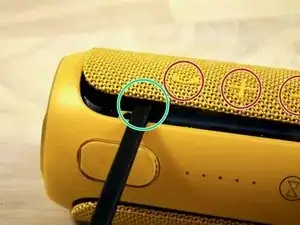

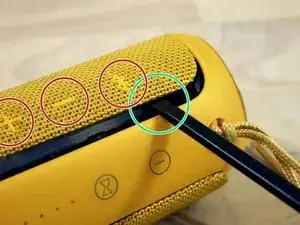

  2. Tmsbk6AuimUSLM2O
    Tmsbk6AuimUSLM2O
    qSgtR2VtO4vxu1TY

    • Pry up the other two tabs, they are located on the other side.

    • Be careful not to break the delicate buttons.

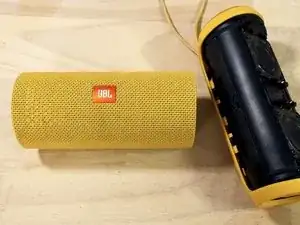

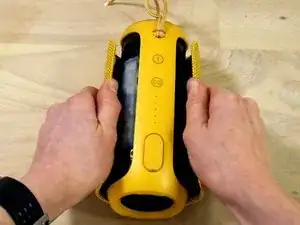

  3. vUVxFQmKEnKaWCHx
    vUVxFQmKEnKaWCHx
    DbEo5HhCuN4Diivo

    • Remove the cover.

    • Don't pull it too much, otherwise it could break.

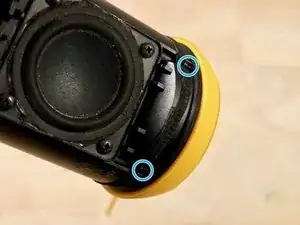

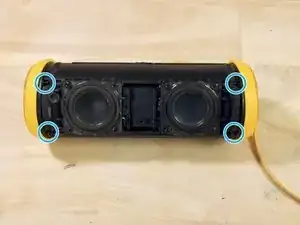

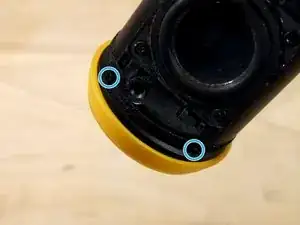

  4. LBAu3HMFZbGNTVAb
    LBAu3HMFZbGNTVAb
    r2K6RXf5Ohs3IbUN
    awkQ5ZHptkgmJYGp

    • Unscrew the four screws located on the edge.

    • The screws usually remain captive, if they fall off after all, put them aside.

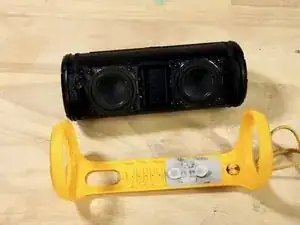

  5. oOJpaTWTRtBbAYlV

    • Remove the second protective cover.

Conclusione

Repeat the same steps in reverse order to reassemble your device.

Autore

Lasse.gra

Membro da: 19/12/17

689 Reputazione

2 commenti

What’s your problem?

Ali -

Uncomplete and Sketchy!

How come is this a battery replacement guide? It is only up to the removal of the second protective layer. Many questions remain: How to locate the battery? How to unplug it? How to remove it? How to plug the new one? How to reassamble? …

Yusuf -
