JBL Flip 3 Speaker Replacement

Scritto Da: Faizan Naveed
  • Commenti: 22
JBL Flip 3 Speaker Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

30 minuti

Introduzione

  1. YBKC2uHoGkwrCTSQ
    YBKC2uHoGkwrCTSQ
    wlVQltUedjSuL4DL
    VM6v3JuWFuQR1AMh

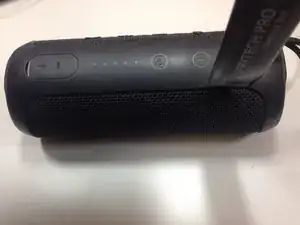

    • Using a pry opening tool, pry into the speaker grill covering as seen in the photos.

  2. X6nVSX1hZLAbChCR
    X6nVSX1hZLAbChCR
    gZHAImWZfgMAwsIM
    IoHyHJZw1ak3sNyJ

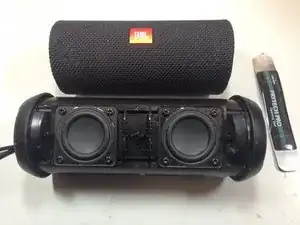

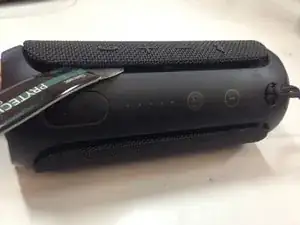

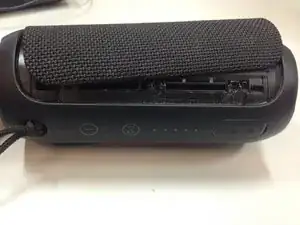

    • Continue to pry open the grill all the way around until it can be removed from the unit itself as seen in the pictures.

  3. vosowBUPavHXeDDl

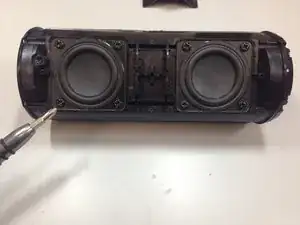

    • Remove all 8 speaker screws using a Philips 00 screwdriver.

  4. cC4gdYTAshKEvAVu
    cC4gdYTAshKEvAVu
    RF3ClcyZtMXyqtLu

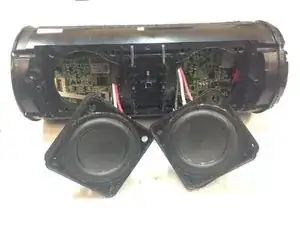

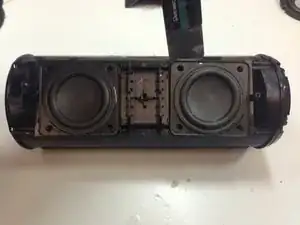

    • Using a pry tool, remove speakers from housing as seen in the picture.

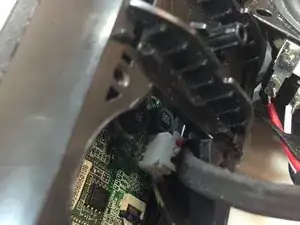

  5. Of4JDsFiUfFMieUG
    Of4JDsFiUfFMieUG
    nssh11kg5GEQeSDx

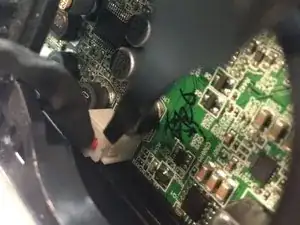

    • Using tweezers, carefully remove both side speakers from the motherboard as shown in the pictures.

    Some do not have a snap on cable. I did this and it rip the prongs out of the board.

    Todd -

    how much to repair the speakers

    Darrian Herbst -

    i have one speaker that needs to be replaced

    Darrian Herbst -

    Worst “repair guide" ever. Just…it’s just bad, folks. I’m d@mn near speechless, and that's rarely the case. Just ask your mother. You know, that fat b¡tch that is reading this over your shoulder.

    Johnny Johnson -

    Good morning! Where can I bring my jbl flip 3 for repair? Thanks

    zenaidamalong -

    Where can I buy the new speakers to replace the ones that aren’t working??

    thomas.turcotte -

Conclusione

To reassemble your device, follow these instructions in reverse order.
