JBL Pulse 3 Speaker Replacement

Scritto Da: Kaitlyn Greenfield
  • Commenti: 10
JBL Pulse 3 Speaker Replacement

Difficoltà

Moderate

Passi

18

Tempo Necessario

25 - 30 minuti

Introduzione

There are four speakers located on the base of the JBL Pulse 3 under the speaker grill.

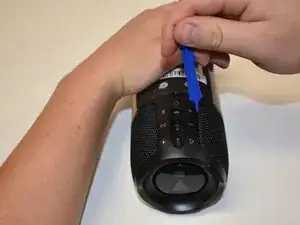

  1. osRpQQvEWALbUHPS

    • Lay the JBL Pulse 3 on its side as shown in the picture.

    • Use a plastic opening tool to lift the top right corner of the speaker grill. A small amount of force is necessary to remove the grill.

  2. 1R1PXMIT3pcCltKR

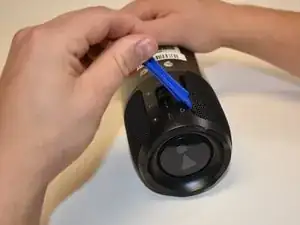

    • Repeat step 1 for bottom right corner of speaker grill.

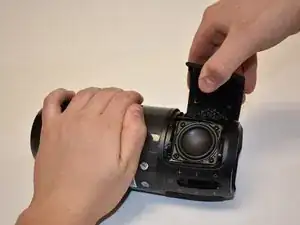

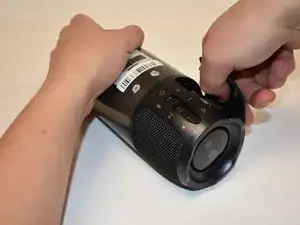

  3. ZPrneUi6ysiqEHCt
    ZPrneUi6ysiqEHCt
    pvuTAto4nieRIobv

    • After pulling the right side of the grill off, place thumb underneath grill as shown in the picture.

    • Lift and pull straight out to pull grill off the posts.

    • Repeat steps 1-3 for the left side of the speaker grill on the JBL Pulse 3. The speaker grill should now be completely removed from the JBL Pulse 3.

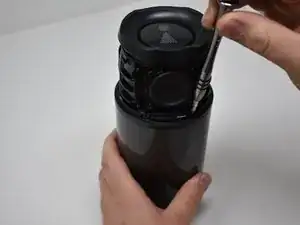

  5. pPNUxvn3dlSdQ6gC
    pPNUxvn3dlSdQ6gC
    WkWxPqFQRGjHWgpc

    • Use a Phillips #00 screwdriver to remove the six black 6mm screws on the inside of the top of the bottom section.

    #00 not required, successfully opened with PH#1

    Stephen Hoefler -

  6. VIiDV24dAPtBc2F2
    VIiDV24dAPtBc2F2
    JQLpKrOVMKxMaGUY

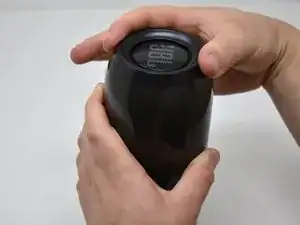

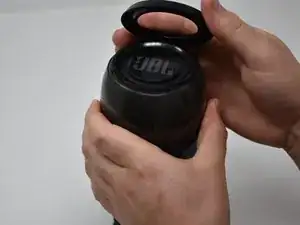

    • Turn the JBL Pulse 3 right-side up and unscrew the top ring of the device. A small amount of force and/or a cotton cloth may be necessary to remove this piece.

    Ca I Specifically buy the top ring

    Julian Cruz -

    I've the same concern as the comment above, can I buy the top ring separately?

    Yousef -

    Opening is not as simple as demonstrated in Step 6. I have followed everything through, am I missing something?

    Kusala Kumsinda -

    Is there any other place to get this part? It doesnt ship to the UK

    Amelia -

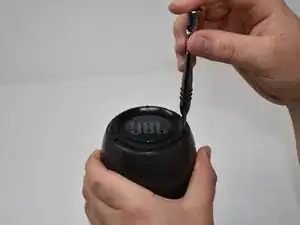

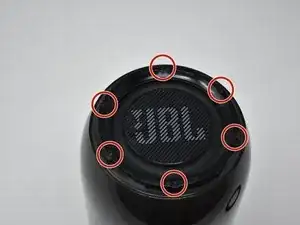

  7. hno3axXOu3AGhB2f
    hno3axXOu3AGhB2f
    A11jYshJ2XpGh4At

    • Remove the six 5mm screws on top of the JBL Pulse 3 with a Phillips #0 screwdriver.

  8. KMRDVvI2aPOSZYua

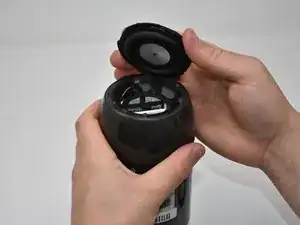

    • Pull off the top disc of the JBL Pulse 3.

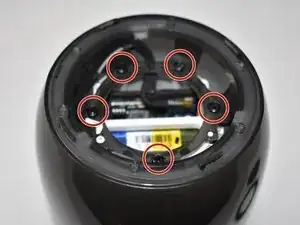

  9. NNnR2JSeLtZPSlfX
    NNnR2JSeLtZPSlfX
    y1BCuvZYxdoEQIHK

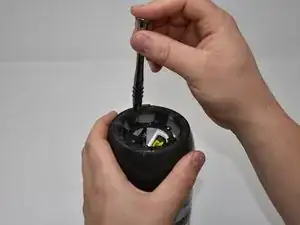

    • Remove the five 7mm screws on the inside of the JBL Pulse 3 with a Phillips #1 screwdriver.

    This phase could be difficult. Try to “twist” the speaker to have a little gap between both parts and insert gently a screwdriver or opening toile to spread the gap.

    Richard Devos -

  10. nIK52M34UtlSjWZ5
    nIK52M34UtlSjWZ5
    DTBHmnflqLbCK6De

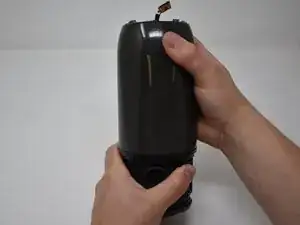

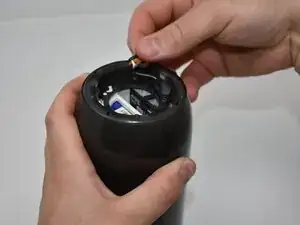

    • Peel off black, taped-on electrical lead from the inside side of the JBL Pulse 3.

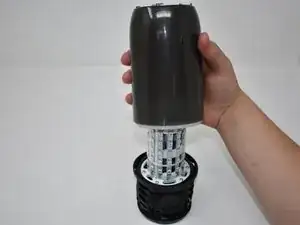

  11. lOwF4QFNlbNe6vBm

    • Pull the top section of the JBL Pulse 3 up. The outside casing to the JBL Pulse 3 should now be removed.

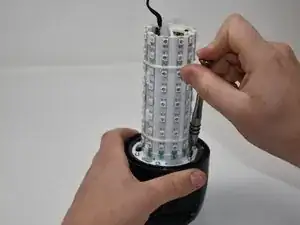

  12. MHMpCYn1u4fjYHBp
    MHMpCYn1u4fjYHBp
    WOEpECyMnDGliXab
    OAlFewuQPJGSbIKT

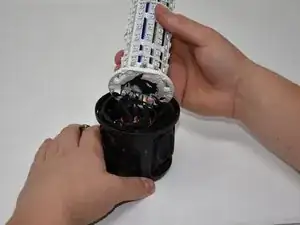

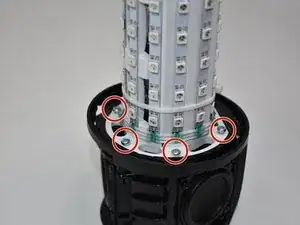

    • Use a Phillips #2 screwdriver to remove the six 11 mm screws that circle the bottom of the LED light display.

    • Pull the LED light display off of the JBL Pulse 3 base.

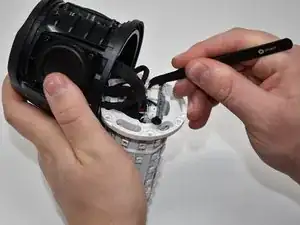

  13. OBiM1Qt6KKsK2MHU
    OBiM1Qt6KKsK2MHU
    bVcly1VEaSDPVdvy

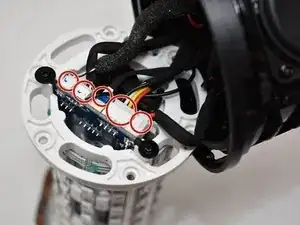

    • Use tweezers to pull the five connections off of the LED light display.

    up to step 13, the battery replacement steps are the same.
    From step 14 the steps change.
    Very good instructions for changing the battery in the jbl pulse 3 can be found here:

    https://www.youtube.com/watch?v=MpznDgxg...

    Mike Miker -

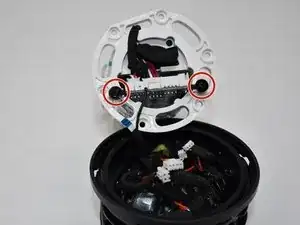

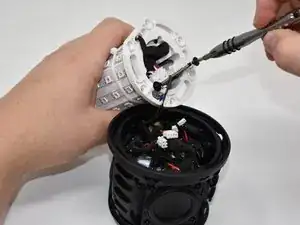

  14. OCEws6KKmNrU2aYh
    OCEws6KKmNrU2aYh
    eAUgV5CxISILM2XY

    • Using a Phillips #0 screwdriver, remove the two black 8mm screws on the bottom of the LED light display.

  15. wfHqqBHaEUrwSMIq
    wfHqqBHaEUrwSMIq
    grUjcwhE1jJRqg5B
    XkKeO2mRSBlDkyYv

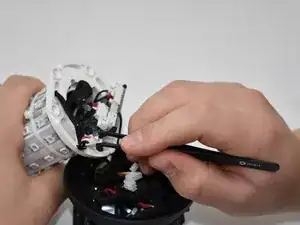

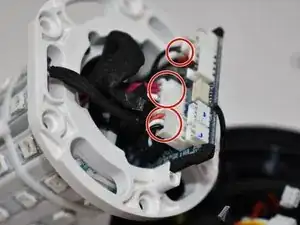

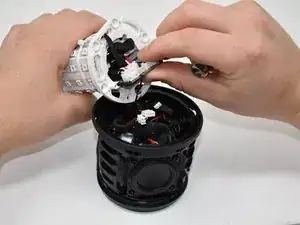

    • Pull out the motherboard slightly from the LED light display as shown. Using tweezers, unplug the three connections attached to the motherboard.

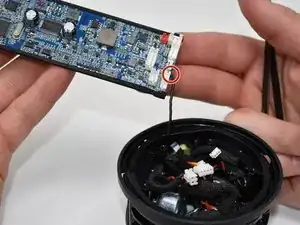

  16. JCEcO4jubmeKVYj1

    • Pull the rest of the motherboard out from the LED light display.

    • Using wire cutters, snip the black wire connecting to the base of the JBL Pulse 3 at the base of the motherboard. The motherboard should now be removed from the JBL Pulse 3.

    Hi Guys! Thanks a lot for the tutorial, but anyone knows where THIS BLACK WIRE IS CONNECTED at the base of the speaker? I accidentally remove it..

    caiopeluso -

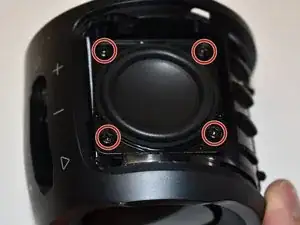

  17. p4RdWfFjHaaDIgIo
    p4RdWfFjHaaDIgIo
    pItRpbkAvYhx6ibu

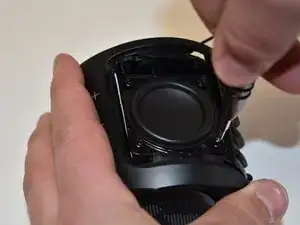

    • Using a Phillips #2 screwdriver, remove the four 10mm screws on the corner of the speaker on the side of the base of the JBL Pulse 3.

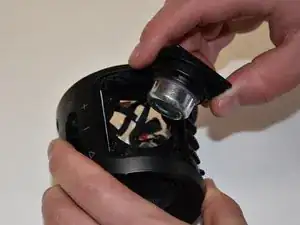

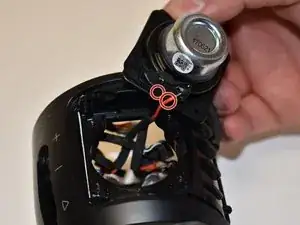

  18. KZHvhOqVPKmS6v4G
    KZHvhOqVPKmS6v4G
    KBCCylVwSbEOplsp

    • Pull out the speaker and cut the black and red wire with wire cutters. The speaker should now be removed from the JBL Pulse 3.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Note: To finish replacing the speaker, you must solder both wires back on to the new speaker.
