Jabra Elite 85h Microphone Replacement

Scritto Da: Ryan Callaghan
  • Commenti: 4
Jabra Elite 85h Microphone Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

Nessuna stima

Introduzione

  1. QVOnAI6Th1tUpOWC
    QVOnAI6Th1tUpOWC
    S5T3TTIaLsOa3hTv
    LeDtQRnBKONgQGHB

    • Remove each ear cushion by hooking your fingers along the inside of the ear cushion and pulling up and away from the ear cup.

    • If the cushion does not fully release, move your hand to the opposite side and pull up inn the same manner.

    Hi sir, I think your guide is incomplete. Do you have the opportunity to bring a sequel?

    Oğuzhan Sancak -

    The battery is under the left earcup.

    NOT the earcup into which you plug the USB cable.

    Not sure why the demo asks you to disassemble the right earcup...

    Jimbo -

    These instructions could use some work! There is no need to disassemble both sides as the battery is under the left ear cup only.

    kelly1 -

  2. MOSSox6BGbM5ZQFN
    MOSSox6BGbM5ZQFN
    SLQCZDbxtCPmFtJT
    ZDDeK4deyGILEOFK

    • The foam inserts and backing tape are very delicate. Take your time when removing them, and be careful to not rip or tear the material.

    • Using the small plastic spudger to assist, begin lifting up and removing the foam inserts with attached backing tape.

  3. HV1i5TsUTIQMMeTo
    HV1i5TsUTIQMMeTo
    eIrhHuOApTKbIRvp
    GJ4OH2eyn3xRSoIP

    • Repeat the previous steps for the other side, removing the foam inserts with care.

  4. Olkaoy4RCCYbMcVw

    • Unscrew and remove the four T6 screws holding the speaker in place.

  5. glKFtkWgwLaOTTDH

    • Repeat the previous step for the other side, removing the four T6 screws.

  6. CFmZL4vkObKq1Qm6

    • Tilt the headphones over so that the speaker tilts out of the plastic holder.

    • Repeat for both sides.

    Battery is behind left speaker ONLY.

    Đorđe Radomirović -

  7. RgiJCBCucryvZfgc
    RgiJCBCucryvZfgc
    bLYNEfhJwKrYEiU5

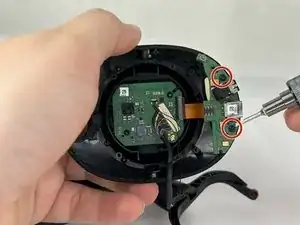

    • Remove the four screws attaching the circuit boards to the headphone enclosure.

    • The microphone is located on the lower circuit board.

  8. KODnGjW4p24UKviT
    KODnGjW4p24UKviT
    HaxvKao2G5HFLPWw
    iSBcrwEcGUTTnjlK

    • Remove the circuit boards from the headphone enclosure.

    • Carefully lift the bar located on the lower circuit board that contains the 24-pin ribbon cable. Remove the cable.

Conclusione

If the microphone on your Jabra Elite 85h is not working, replacement could be an appropriate solution.
