Introduzione

This a guide on cleaning and replacing keys on a KBD67 Lite R4 keyboard.

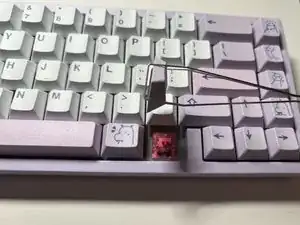

  1. a6ihZ6oQEVZeZ4ZI
    a6ihZ6oQEVZeZ4ZI
    VQS42CsD5XVbVJj3
    CKZGMZxDHHR3yDEl

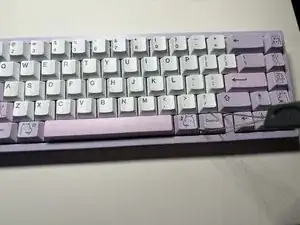

    • Place keyboard on top of a flat table.

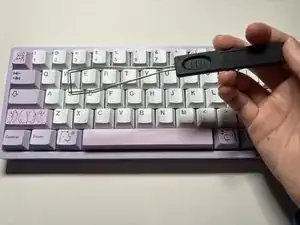

    • Remove keycaps manually or with a key cap puller, as demonstrated.

    • Organize tools to prevent loss.

  2. hZVanYdLqnJ1kC6i
    hZVanYdLqnJ1kC6i
    l4yMpERPSvXCV1SA
    Eg5IWaixKdMbYTao

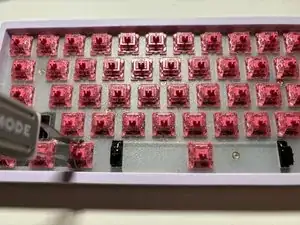

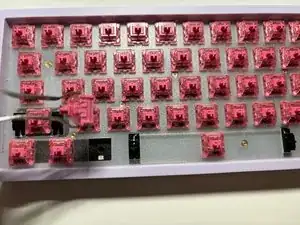

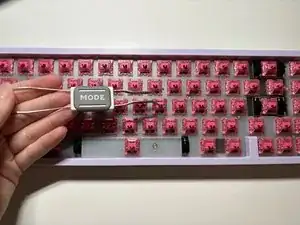

    • These images showcase the correct utilization of a key switch puller.

    • Remove switches either manually or with a key switch puller.

    • A switch puller is recommended as hand removal might be difficult.

  3. EiHgFlJbS6aQ4Jcm
    EiHgFlJbS6aQ4Jcm
    DDFa6oOk3YojaYRh
    Fx2P5gLoTNtYIr1i

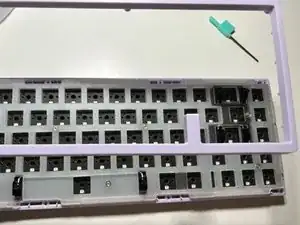

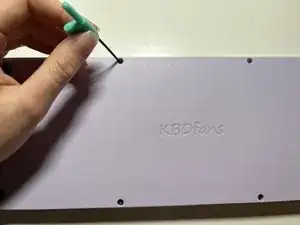

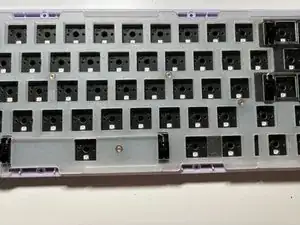

    • Use screwdriver to unscrew the eight screws on back of keyboard.

    • Make sure to secure screws for later use.

  4. haMEWD1bH5V1Xj1l
    haMEWD1bH5V1Xj1l
    ygoZRQVEHFowTojc
    xXfBPxTE2rrgwOEx

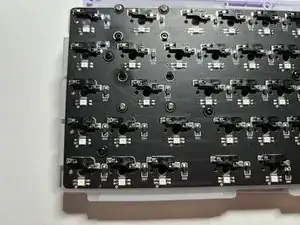

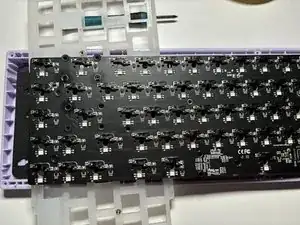

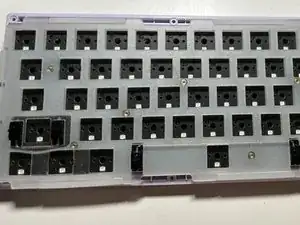

    • Unscrew the PCB from case.

    • Avoid placing the PCB on static-prone surfaces to prevent it from shorting the switch sockets.

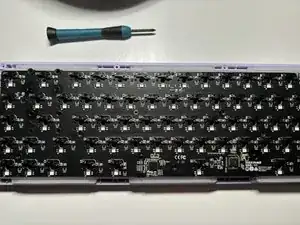

  5. SpSQ4nHFtW5pDpMM
    SpSQ4nHFtW5pDpMM
    gwhQwaOjOMsRXT3x
    mfcZPcnmUwsZNxdZ

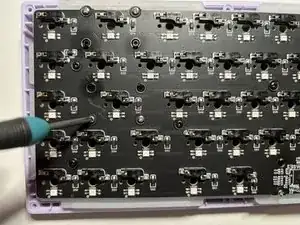

    • Unscrew the stabilizers from the back of the PCB.

    • Keep track of the noise-reducing foam stickers screwed between the PCB and keyboard switches.

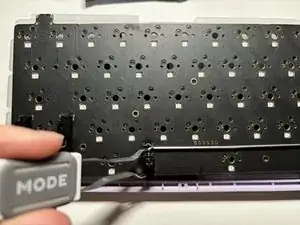

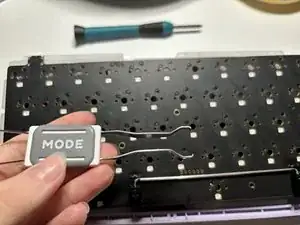

  6. GXPHd33iNqESAZjM
    GXPHd33iNqESAZjM
    UemI5PqdFKC1GXm5
    iZw4AEZQjmZCBZXN

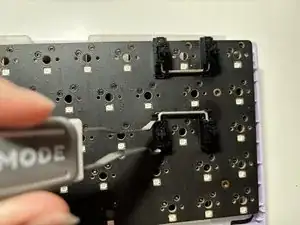

    • Use switch puller to take out stabilizers.

    • Once the stabilizers are unscrewed from the back, they can be removed from the PCB.

    • This completes the disassembly of the keyboard. Place the PCB in a static-free area.

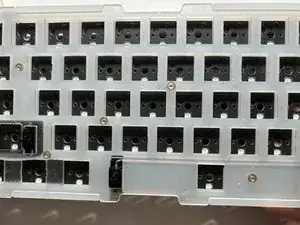

  7. ZSh4DPU1ymEod2dV
    ZSh4DPU1ymEod2dV
    21BtTiUo2WQeEOBG
    wAHJBVuQ1FZPSMPt

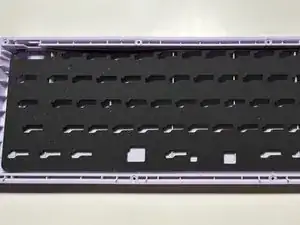

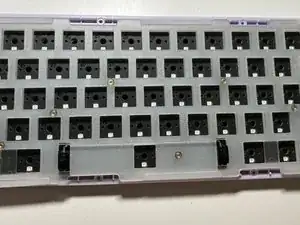

    • Place the plastic and foam cover on the bottom of the keyboard case.

    • The PCB sits on top of the foam cover.

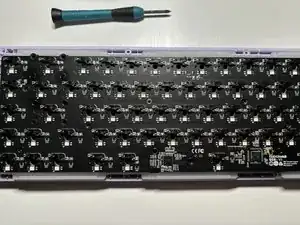

  8. gMALJVZa2SKVndln
    gMALJVZa2SKVndln
    Q3uDUmNaXEyLrGRc
    dnNBuSygAL3OTRUL

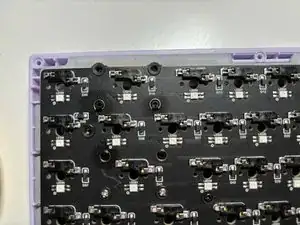

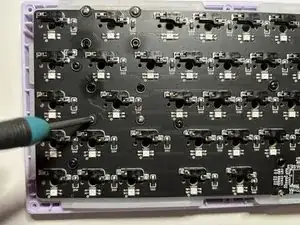

    • Ensure noise-reducing foam stickers are in position before attaching the stabilizers.

    • Install stabilizers onto the PCB.

    • Screw where applicable.

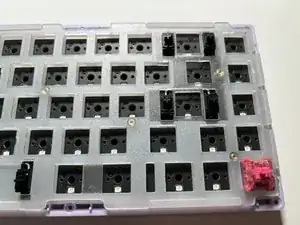

  9. YOlCLiLDqsFgEUMx
    YOlCLiLDqsFgEUMx
    ijWQYH4HlcPWxBqr
    lYOCNeNVMqVqHLbE

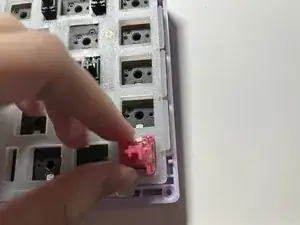

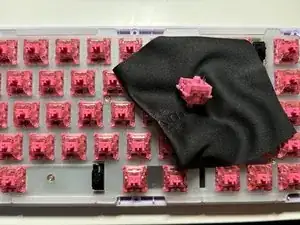

    • Do not bend the switch pins.

    • Optional: You can clean the switches with a microfiber cloth.

    • Align the key switch pins with the corresponding holes on the PCB.

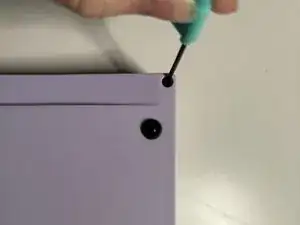

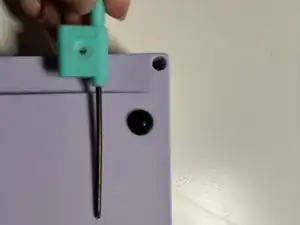

  10. 3cyKLIA6BKPWvNiA
    3cyKLIA6BKPWvNiA
    SH5hUUH4KIhXxtWh
    P5M2uOUXB3itYQGY

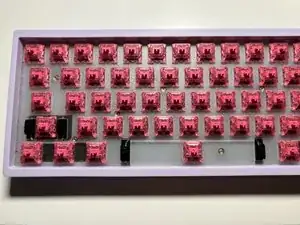

    • Use the eight screws saved from the third step.

    • Screw where applicable.

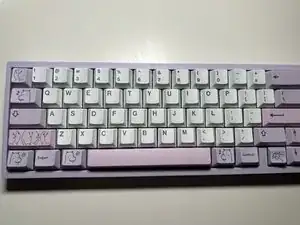

  11. HLZ1LAiQAXWjDasF
    HLZ1LAiQAXWjDasF
    CEYFNZVrrQItEtla
    IlYOtY3c25Cf23rs

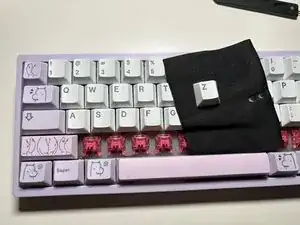

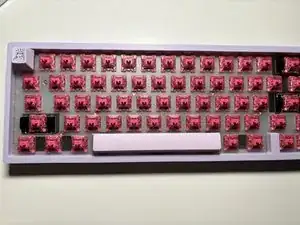

    • Choose keycaps to place onto switches.

    • Optional: If you would like, clean the keycaps with a microfiber cloth or a bristled toothbrush before reattaching them.

  12. Jf3U6ZUK2frbNZsB
    Jf3U6ZUK2frbNZsB
    WlaqptOlBobwGc6N

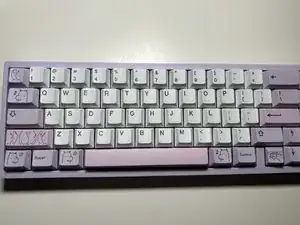

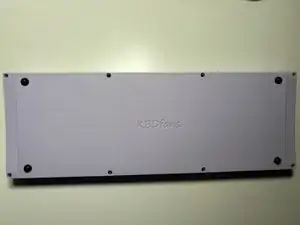

    • Plug the keyboard into a device of your choice and test its functions using appropriate software.

Conclusione

To reassemble your device, follow these instructions in reverse order.
