KBParadise V6000 Disassembly

Difficoltà

Very easy

Passi

5

Tempo Necessario

5 - 10 minuti

Introduzione

  1. 5tEiymEdtBJsVkb2

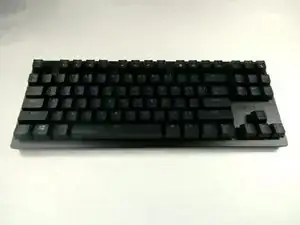

    • Place the unplugged keyboard on a flat, clean surface appropriate for working on.

  2. pKJvZfxRWdOKSdBO
    pKJvZfxRWdOKSdBO
    A5SYbGYk2EhHYGnF

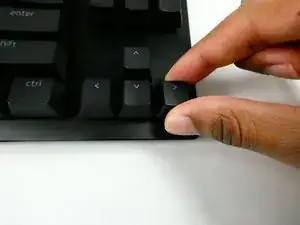

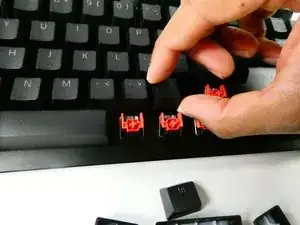

    • Grip the keycap with your keycap puller.

    • You can remove keycaps with your fingers if you don’t have a puller, but the adjacent keycaps must be removed first for sufficient grip.

  3. ypxwG6HKqYEJZ5rE
    ypxwG6HKqYEJZ5rE
    jG5qffwEXkUQDK5E
    jjutFKDvejrLq164

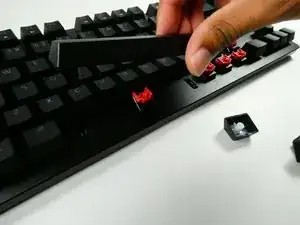

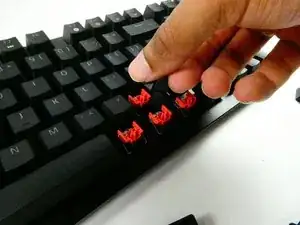

    • Pull with an upwards force to remove the keycap.

    • Take a moment to clean the area that was previously obscured if it’s dirty.

    • Use gentle force so as not to damage the stabilizers.

  4. GAV2EqOwwHVuTABo
    GAV2EqOwwHVuTABo
    fcc4f4SufUvWsRqq

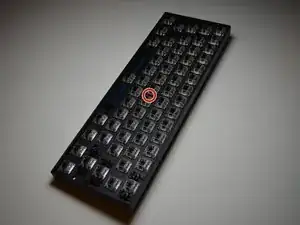

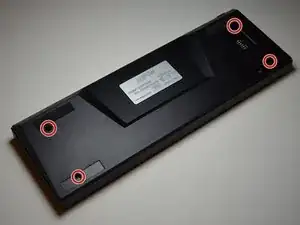

    • Remove the five screws that hold the keyboard together.

    • Two of the screws on the bottom are under the two rubber feet closest to the user, so the rubber feet must be carefully peeled away to access the screws.

  5. RBFOd41FHov6lvgV
    RBFOd41FHov6lvgV
    w62OYyqCjWdeMdZr

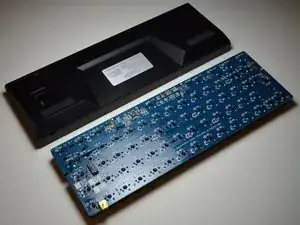

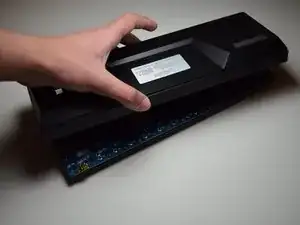

    • Invert the keyboard and lift the case off.

    • If the case holds on, gently hit the keyboard into the palm of your hand to dislodge the internals.

Conclusione

To reassemble your device, follow these instructions in reverse order.
