Kindle Touch Back Cover Replacement

Scritto Da: Adam Yerly
  • Commenti: 3
Kindle Touch Back Cover Replacement

Difficoltà

Easy

Passi

2

Tempo Necessario

1 minuto

Introduzione

  1. HTnRmaKcPUqhJN2S
    HTnRmaKcPUqhJN2S
    PASaJ33EXJWRCpwQ
    SV4hXsVNZqyy1LNG

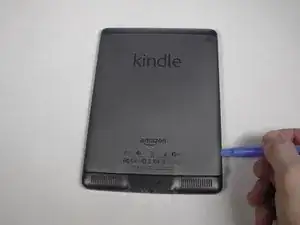

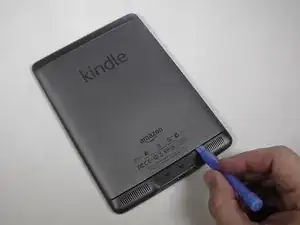

    • Use the plastic opening tool to undo the ten plastic clips around the back panel of the Kindle.

    Wear work gloves as the tool can easily slip and stab you in the hand.

    BRUCE -

    The clips aren't all the same; the side clips are slide-locks rather than press-locks.

    Use the Opening Tool to unclip the clips along the bottom edge. This will allow the lid to slide towards the top, releasing the side clips and allowing the lid to be lifted off.

    When reassembling, slide the lid upwards while pressing the sides to re-engage the side clips, then press the bottom edge to lock it into place.

    jimf -

  2. 3Ad5BKbISCIUnD3P
    3Ad5BKbISCIUnD3P
    KgMp3ZxIO3rjZrsK

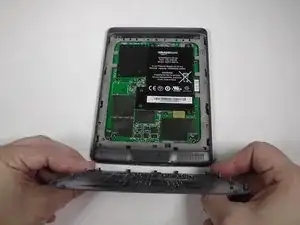

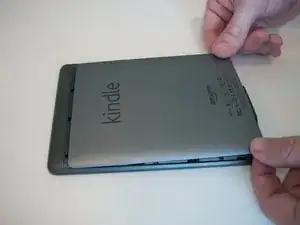

    • Gently lift the bottom and slide the panel off.

    There are four tabs on each side.The two nearest the top are open at the top, hence they slide out (back towards the power connector end.

    This is important in the reassembly stage:

    1. Align the back cover about 0.75 cm away from the top

    2. Hold the top half of the cover flat against the unit, and flex the cover away from the case a little at the bottom

    3. Slide the top and the first two clips parallel to the case

    4. snap the remaining bottom clips in place

    John Haywood -

Conclusione

To reassemble your device, follow these instructions in reverse order.
