Kodak EasyShare C913 Capacitor Replacement

Scritto Da: Alan Galarza
  • Commenti: 0
Kodak EasyShare C913 Capacitor Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

5 - 10 minuti

Introduzione

Use this guide to remove the capacitor.

  1. HTMAhkS4RfXfLBgS
    HTMAhkS4RfXfLBgS
    EuF4iL5paOFigtmt
    GlpgkGRXcwJi2xun

    • Position the camera with the bottom facing up.

    • Slide the battery cover in the direction of the arrow with your finger gently.

    • Remove the batteries

  2. 6LIqgUDboJnmEo3R
    6LIqgUDboJnmEo3R
    GOMRsP1Z5NljhAbp
    IqRk3srHwcbMoPaY

    • Remove the seven 4.5mm screws with a Phillips #00 screwdriver.

    • 2 on the left

    • 2 on the right

    • 3 on the bottom

  3. SxXyAH3qX2WtCWhh
    SxXyAH3qX2WtCWhh
    IaStNm4kjUjDwxvo
    2VuA5FPQnlSRtrRp

    • Firmly grasp the back of the camera and pull the away the casing.

  4. SakkFYWG1gNxc21C
    SakkFYWG1gNxc21C
    HTE45rESN1DvUA46
    2q6cXrwYMKT5nRXJ

    • Keep the battery door open

    • Firmly grasp the front casing and pull away from the camera.

  5. reiCdEexHwvjDaRv
    reiCdEexHwvjDaRv
    gyQDcN5iEXDDOGYs

    • Orient the camera with the lens facing you.

    • Use a Phillips #00 screwdriver to remove the one 2.2mm screw on the plastic bridge.

    • Lift the plastic bridge off and place it to the side.

  6. ZnB5WdD3ZwlSxP31

    • Do not touch the capacitor contact points for any reason. This will result in a severe shock.

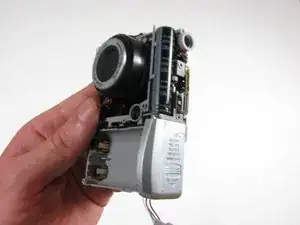

  7. PvAOIKDNADkvIKVX
    PvAOIKDNADkvIKVX
    iAwlSHQMV3yVdgYF
    NZRIAFUSH2MbLnqx

    • Grasp the capacitor, carefully remove it from its holder, and place it off to the side.

  8. A23ijGDHJF4dJbqy

    • De-solder the connections at the base of the capacitor

Conclusione

To reassemble your device, follow these instructions in reverse order.
