Kodak EasyShare LS743 Battery Door Replacement

Using your fingernail, open the battery cover.

Slide the orange latch sideways to eject the battery.

Remove the battery from the battery slot.

Using a Phillips #00 screwdriver, remove two 5.39 mm screws next to the battery slot.

Remove the metal piece holding down the lanyard, then remove the lanyard.

Using a Phillips #00 screwdriver, remove seven screws located on the outside case of the camera.

One 6.25 mm screw is located on the top right corner, right to the "OK" button.

Four 4.45 mm screws are on the bottom of the camera.

Two 2.95 mm screws are on the left side of the camera, above the USB port.

Carefully remove the rear camera casing.

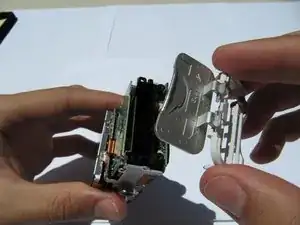

Carefully remove the front camera casing.

Remove loose battery door.
