LED di diagnostica iMac Intel 24" EMC 2134 e 2211

Scritto Da: Richdave

Commenti: 55

LED di diagnostica iMac Intel 24" EMC 2134 e 2211

Difficoltà

Moderato

Passi

Tempo Necessario

15 minuti

Introduzione

Gli iMac da 24" del 2007 e del 2008 hanno quattro LED di diagnostica sulla scheda madre che sono utili per capire i problemi del computer. Dovrai smontare un po' il computer per trovare i LED. Questa guida è basata sulle informazioni riportate sul manuale di servizio Apple.

**Questa interpretazione dei LED è applicabile anche agli iMac Intel da 20" EMC 2133 e 2210**

Strumenti

Passo 1

Allentare la vite con testa a croce al centro dello sportello di accesso.
La vite resta all'interno dello sportello di accesso.
Rimuovere lo sportello di accesso dall'iMac.

PH2 head necessary to remove screw.

airshack -

Mine was as written, a PH1.

tpivo -

Passo 2

Il pannello di vetro è fissato nella mascherina anteriore con quattordici magneti posizionati lungo il perimetro.

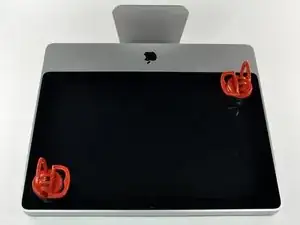

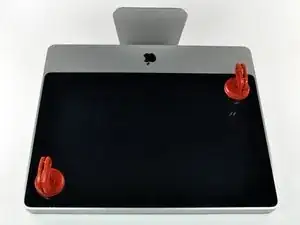

Far aderire due ventose agli angoli opposti del pannello di vetro.
Per far aderire le nostre ventose, per prima cosa posizionarle con la maniglia semovente parallela alla superficie del pannello di vetro. Tenendo delicatamente la ventosa contro il vetro, sollevare la maniglia semovente finché non è parallela all'altra maniglia.
Se la ventosa non aderisce, provare a ripulire il pannello di vetro e la ventosa con un solvente delicato, come i detergenti per i vetri.

Save $15 dollars and use a plunger. Works perfectly.

Michael Ybarra -

Even better and more elegant: go to a household shop and buy two transparent plastic bathroom baskets with two suction cups each. I found them in Xenos in the Netherlands (maybe also in Germany).

freed - 21/07/14

Perhaps not so elegant but equally effective without any adverse effects to either... try a vacuum cleaner.

Andrew Dobson - 24/05/15

The same kind of suction cups are available from Harbor Freight Tools (Item # 62715) for $2.99 each or $5.98/pair (plus sales tax).

Bob Atkinson - 19/04/20

Passo 3

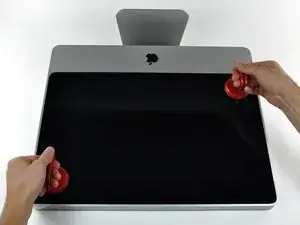

Estrarre delicatamente il pannello di vetro dall'iMac.
Il pannello di vetro presenta diversi piedini di posizionamento lungo il perimetro. Per evitare di staccare i piedini dal pannello di vetro, fare attenzione a rimuoverlo solo tirando verso l'alto.
Pulire con attenzione la parte interna del pannello di vetro e l'LCD, poiché la polvere e le impronte digitali saranno sgradevolmente visibili durante l'accensione del display.

The glass panel is somewhat thin and should come away quite easily without much force so be gentle.

adamngordon -

Just an FYI - my glass panel did not line up perfectly when reinstalled. Off by just 1mm. May take another attempt at it later, but does not interfere with the iSight camera. Only someone with an eagle-eye (like me) will notice it's not perfect.

ajpfl -

To reinstall the glass, I lined up the bottom edge first, then pivoted the top in. The magnets pulled it quickly into place.

Magnus Dalen - 09/11/14

I didn't want to use such small suction cups.. so I got suction bathroom handles from Home Depot. Very sturdy and to me, safer choice.

Gail - 27/01/15

Passo 4

Rimuovere le 12 viti seguenti, che fissano la mascherina anteriore al case posteriore:
Otto viti Torx T8 da 13 mm.
In alternativa, potrebbero esserci sei viti Torx T8 da 13 mm e due da 25 mm.
Quattro viti Torx T8 da 25 mm.
In alternativa, potrebbero esserci due viti Torx T8 da 25 mm (all'esterno) e due da 35 mm (all'interno).

I only had two 25 mm T8 Torx on my model. (The two inner orange circles as shown in the diagram.)

stevejansen -

I don't know if this is different but i am in the process of disassembling a 24' imac emc: 2134. i have only: (2) 25 mm T8 screws the inner two on the bottom of the screen. I have (4) 13 mm t8 screws the outer most holes on the bottom and the 2 holes on the right side of the monitor above the drive entrance and the remaining holes are (6) 11 mm t8 screws

ccarter314 -

I have the same screws as ccarter on a 2211 except on the bottom row there are only 4 screws total, the longer ones go in the middle two.

maccentric -

The Torx set I bought from ifixIt is well worth the money. My screw heads in this step were T9 not T8. THe T8 bit was too sloppy in the screwhead and there was a risk of rounding the slots. Having the option to go a size-up was perfect.

Troy -

My 2211 has a different screw configuration.

2 - 32mm long screws towards the middle of the bottom edge

4 - 18mm long screws (2 at the corners of the bottom edge and 2 along the right edge)

6 - 13mm screws along top and left edges

christian -

Mine is the same — two very long, four medium, and six short. Also my T9 worked better than my T8 which was a bit loose.

johann beda - 19/06/18

I have the same screws as Christian. The key is to make sure all screws are flush to the surface, so that the glass can be held up by the magnets.

Kelvin Lau -

On mine, for the red circles, I had the six 13mm Torx plus two 25mm Torx. It's not indicated in the picture here, but the 25mm Torx went on either side of the optical drive.

JD Fox Micro - 14/10/14

I marked next to each hole with a pencil "S, M or L" to indicate which length screw goes where. No guess work on reassembly.

Magnus Dalen - 09/11/14

I dropped my screwdriver on the lcd and nicked it. :(

hewsey - 19/05/20

Passo 5

La mascherina anteriore è ancora collegata all'iMac mediante il cavo del microfono.
Sollevare delicatamente la mascherina dal bordo superiore, lontano dal case posteriore. Può essere utile premere delicatamente gli angoli del display con i pollici.
Dopo aver rimosso il bordo superiore della mascherina anteriore dal case posteriore, ruotare la mascherina verso la staffa ed estrarla dal case posteriore.
Per la reinstallazione della mascherina anteriore, iniziare dal bordo inferiore e verificare che sia allineata con il case posteriore prima di poggiare il bordo superiore sull'iMac.

The microphone cable must be disconnected BEFORE rotating the bezel towards the stand.

Also, the bezel covers the sides of the case, not just the front. This isn't obvious from the pictures.

wallace - 13/10/14

Looking at the meaning of the LEDS

i've got 3 LEDS on but i don't get a chime or the screen.

i am going to check the inverter voltages but can only find info for the 20" macs iMac Intel 20" EMC 2210 Power Supply Output Voltage Test

does anyone know where i can get info for the 24"

samraby - 24/11/14

i have the same thing, 3 LEDs on but no chime and no screen.

what is the fix? and problem?

Bill - 21/02/15

I'm in the same position. 3 LED's, No chime, no life in the screen, Optical drive starts up but no other signs of life i.e.:fans also don't start up.....

Any guidance would be greatly appreciated!!

Dominik - 05/11/15

Passo 6

Scollegare il connettore del cavo del microfono, rimuovendo il nastro secondo necessità.
Affinché la mascherina anteriore sia posizionata correttamente, verificare di aver inserito il connettore nello spazio vuoto accanto alla scheda della fotocamera.

I didn't disconect the cable. I was working on a large table that allowed me to carefully flip the bezel upside down and rest it that way with the cable connected through the entire process.

fulker - 21/02/15

I also skipped disconnecting the microphone cable. I have a large table and I stacked some books next to the iMac. There was plenty of cable for the bezel to fold nicely over the top of the iMac.

mikkorongas - 30/08/15

I needed to move the bezel away, so disconnected the cable. On reassembly found that the pins had pulled out of the plastic housing. Need to know orientation of the 3 wires in the housing.

prreitz - 31/01/16

I used the floor instead of a table and left the cable connected.

Frank Carrano - 12/01/17

Passo 7

Per osservare i LED, dovrai dare corrente all'iMac con la cornice anteriore smontata. Assicurati di non toccare nessuna componente dell'iMac o le schede logiche esposte mentre è attaccato alla corrente.

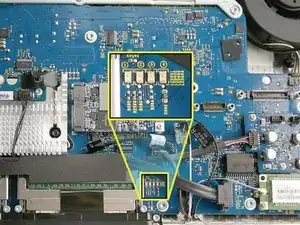

Trova i LED di diagnostica tra le prese della RAM e il connettore SATA.
I LED sono numerati da 1 a 4, da sinistra a destra. Potresti dover spostare il cavo SATA per vederli chiaramente.
Se stai seguendo questa guida per gli iMac Intel 20" EMC 2210 e 2133, i LED sono posizionato sopra il connettore SATA e non sono così visibili.
LED 1: Indica che la scheda madre ha rilevato la tensione di mantenimento dall'alimentatore. Questo LED resterà acceso finché l'iMac è collegato alla corrente. Resterà acceso anche se l'iMac è spento o in ibernazione. Si spegnerà solo stacchi la corrente o se l'alimentatore è difettoso.
LED 2: Indica che la scheda madre ha rilevato la tensione corretta dall'alimentatore quando il computer è acceso. Questo LED resterà acceso quando lo è anche il computer e l'alimentatore funziona correttamente.
LED 3: Indica che il computer e la scheda grafica stanno comunicando. Questo LED resterà acceso se il computer comunicherà correttamente con la scheda grafica. Se i LED 1 e 2 sono accesi e si sente il suono di accensione, ma questo LED è spento, allora la scheda grafica può non essere installata correttamente o deve essere sostituita.
LED 4: Indica che il computer e lo schermo LCD stanno comunicando. Questo LED resterà acceso se il computer è acceso e il segnale video viene generato. Se il LED è acceso ma lo schermo non si accende, allora lo schermo LCD o l'inverter possono non essere installati correttamente o devono essere sostituiti.

I have LED 1,2 and 3 lighting up, LED 4 is off. Does that indicate a videocard issue?

nbeijer - 06/10/15

3 leds appear to be the correct status - LED power supply and logic board tests

Gwyn Evans - 08/10/15

Hi friend, Your model is 24” a1225 emc2211? I have exactly the same problem...

According to the led test it is a problem of the connection of the display or the video card, but I am almost sure that it is power supply, Did you find any solution?

Victor - 28/06/19

LED 1 lights when I plug in the power. As soon as I touch the power button, LED 1 goes off, and nothing else. All LEDs are off. Unplug and replug and LED 1 lights. This indicates there's no problem with the power supply.

I'm fixing the oft-defective NVIDIA GeForce 8800 GS GPU. I reflowed the GPU and am in the process of seeing if the reflow worked. Before disassembly, the machine could turn on. Now nothing. During the process, I cracked the connector on the power inverter cable that goes from the power supply to the back of of the display.

In my interest to get my iMac together, I placed the single dangling wire on its pin, then placed the two intact sides of the inverter connector on either side. (Gluing the connector together just didn't work.) I plan to order a replacement cable as soon as I can.

Could this wonky cable connection cause the whole system to not function? I think it could, but thought I'd ask. Any other thoughts or gotchas from people who've done this type of work?

walkingwired - 27/10/15

Ok, display is black, I have led #1 lit when power is connected, led #2 comes on and stays on when power button is pressed, the fans come on, it checks the optical drive, I hear faint hard drive noise, but led #3 & led #4 do not come on. And I do not get a startup sound. What would this indicate?

ferglesharky69 - 24/07/17

Any update on this? I seem to be having the same problem.

Hieu Nguyen - 07/11/17

2008 24" iMac EMC 2211 Model 8,1 no power. I removed bezel and looked for Led lights. Non lit up. I'm thinking power supply? Thoughts. Video card? Thanks in advance.

harley24052000 - 12/08/17

it’s possible, I have the same issue. The #1 light is on when plugged in but soon as I press the power button it is gone….then no lights at all. Let it sit for 10 minutes plug it back in …no lights …nothing. I think maybe the power supply. I don’t think you can tell if it’s anything else like the logic board unless you have a known working power supply.

QuickTech - 27/01/18

I removed my screen to put in a hdd but after i put lcd back the forth light didnt come on, no display or start up tone.. cant work it out!?

airbrushkits - 05/06/19

Hi, I have a similar problem? Did you solve it?

Daniele Sforza - 20/07/19

On A1224 iMac i have LED 1 On. When I press power switch, led 2 turns on, but nothing more happens. I have not power on sound and fans do not turn on. What do you think is the issue? Videocard issue?

Jorge Yerbito - 04/09/19

I have light one come on stays on as long as the power cords plugged in light to stays on as soon as it boots or whatever and it makes a sound like 3 stays on but light for does not come on and I have nose thing on my screen but the screen works great prior to me upgrading the paste on my GPU and CP

Clark Heisler - 12/02/20

I get all four lcd lights on but nothing shows up on the lcd panel. Is there a way to test if it the panel or the inverter ?

Kyle - 21/04/20

Chances are you have a bad Lcd. They have fluorescent tubes that make the screen light up. Try a very high powered flash light to check for an image. If you see an I make chances are you need a new Lcd panel.

mamashannon4u - 25/04/20

I had this issue with an old iMac that stood for ages and the onboard battery ran flat. Replaced it and the machine powered on but no beeps or display. 4th LED was off. Only once I had it apart I tried various RAM combinations and got the bong with that. Re-connected everything and all good, including the 4th LED and display. Check the ram with known good RAM and try a few times.

Alistair Wallis - 24/07/20

It was the battery! Completely dead iMac A1225 EMC 2134. Was about to recycle it but figured I’d try this tutorial. I initially had just LED 1 green- and then none when I hit the power button. I replaced the PRAM battery and instant Bong and full boot up with 4 LEDs! Thank you for this great tutorial- I would simply add to replace the battery before doing anything major like a power supply.

Kupe -

Conclusione

Per rimontare il tuo dispositivo, segui le istruzioni in ordine inverso.
