LG Cosmos Rear Case Replacement

Scritto Da: Johnny Phane
  • Commenti: 0
LG Cosmos Rear Case Replacement

Difficoltà

Easy

Passi

5

Tempo Necessario

10 - 15 minuti

Introduzione

If the rear case is damaged, it is simple and quick to replace. It requires the removal of five screws and prying of the rear case.

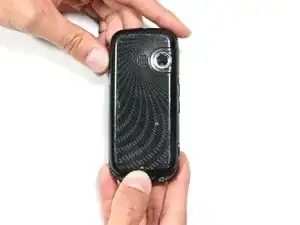

  1. uQQLLiQGlXLUZEgN

    • Apply an upward force to slide the back cover off.

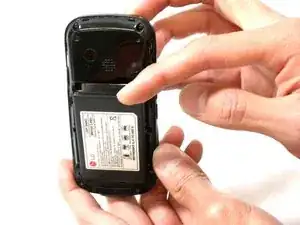

  2. 46sSMLiX3VOC2tNn

    • Use your finger to push down on the top of the battery and pull it out.

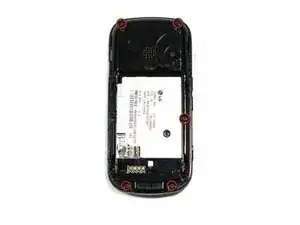

  3. BiIGW3QfOQaNv5Dk

    • Remove the five 3.0mm Phillips #000 screws along the edge of the rear case.

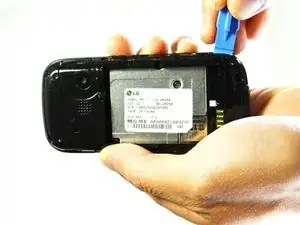

  4. FujYESQLKTLygCAu

    • Use a plastic opening tool to pry the rear case loose.

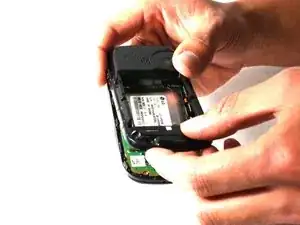

  5. 2QsAP6pwPj6Wabdl

    • Once the rear case is loose, lift it from the rest of the phone.

Conclusione

To reassemble your device, follow these instructions in reverse order.
