LG K10 Rear Camera Replacement

Scritto Da: Witrigs
  • Commenti: 3
LG K10 Rear Camera Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

Nessuna stima

Introduzione

  1. pZDHARCd1nmbPPXC

    • Power off the device

    • Remove the backing

  2. rfAaMdoQFF21PIUB

    • Remove the battery

  3. kIVKuHqfr6ImCjdb

    • Unscrew every screw of the bottom of the phone and use guitar picks to remove the plastic frame of the phone

  4. 25D6fJUnIuU3XMyR

    • With a pick lift the side of the phone, in order to remove the backside

    • Repeat this step on all sides of the phone

  5. WpPSCArSB3Qgqk3H

    • Once the back is completely off, you now have complete access to the rear camera

    • You also now have access to the rear/ front speakers, and motherboard

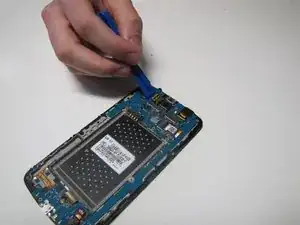

  6. ugvbd52NAiugFeCM

    • Insert a plastic opening tool under the edge of the rear camera's press-fit connector. Lift the connector up and away from the motherboard to pop the ribbon cable free.

    • Remove the rear facing camera.

    Buen día, muchas gracias por este tutorial. Está bastante claro y me ha resultado útil. Una pregunta, ¿has intentando abrir la cámara? Te comento, deseo remover el filtro de infrarrojo que hay en ella. Si lo has hecho y tienes algún tip o sugerencia para abrir la cámara sin dañarla, y lo puedes compartir, yo te lo agradecería. Saludos y buen día.

    Rodrigo Estañol -

    Good morning! I’m sorry, I wrote the past comment in spanish and I don’t know why. What I was asking is: have you ever opened the camera? I want to remove the infrared filter, i want to convert the LG K10 camera to infrared. But it’s so small that it’s difficult to do and I would like to know if you have any suggestion to do it. Thanks in advance and best regards!

    Rodrigo Estañol -

Conclusione

To reassemble your device, follow these instructions in reverse order.
