LG Optimus L7 P705 Speaker Replacement

Scritto Da: Bruna
  • Commenti: 0
LG Optimus L7 P705 Speaker Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

Nessuna stima

Introduzione

The following guide explains how to replace the speaker.

  1. G2ZBygJH3VBErD5R
    G2ZBygJH3VBErD5R
    2RQDCOPW3cBYJLrn

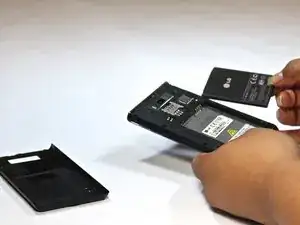

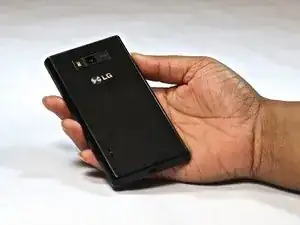

    • Remove back cover.

    • Remove the battery and simcard.

  2. BvO154qoaPbCeAuJ

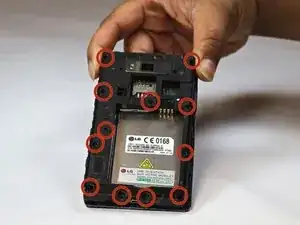

    • Remove the 12 screws (with the phillips head 000) around frame and near sim and sd cards.

  3. tViBIU66shxTG5uZ

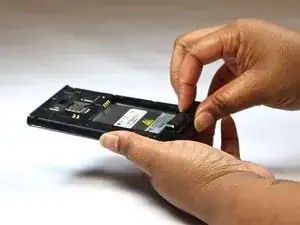

    • Remove bottom plate where the charger port is located.

  4. 4rLDMbpIkPT4VAGU
    4rLDMbpIkPT4VAGU
    PUBlYc3bKBNRXCpj

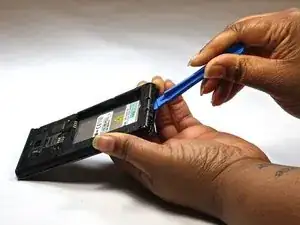

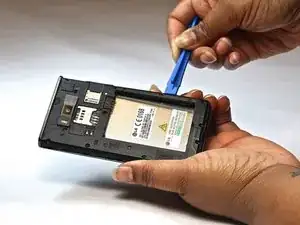

    • Remove the back piece.

  5. vONFbfYTyJKVIPGX

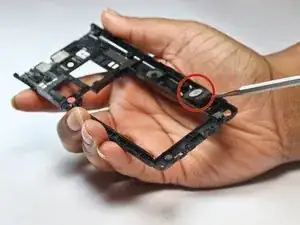

    • Locate the speaker on reverse side of back piece.

    • Using a Spudger, lift off the speaker and replace as needed.

Conclusione

To reassemble your device, follow these instructions in reverse order.
