LG Refrigerator Flap Door Motor Testing and Replacement

Scritto Da: Bill Gilbert
  • Commenti: 0
LG Refrigerator Flap Door Motor Testing and Replacement

Difficoltà

Moderate

Passi

15

Tempo Necessario

1 - 2 ore

Introduzione

Use this guide to test and replace the flap door motor on your LG refrigerator.

This guide will work for most LG refrigerators. This guide is written with an LG model LFX25973 refrigerator. If you have a different model, you may encounter some minor disassembly differences, but the overall repair process will be the same.

The flap door keeps outside air from entering the ice maker compartment. This prevents frost buildup, which could cause problems with the ice maker.

If the flap door motor won't operate, there will be one of two problems. If the flap door doesn't open, no ice will be dispensed and the ice may jam in the ice bucket. Conversely, if the flap door won't close, the ice maker may malfunction because of an ice/frost buildup.

  1. SaOfLbkeAxgmho5g

    • Unplug your refrigerator before you begin your repair.

    • If you are testing or repairing the following items, you may also need to shut off and disconnect the water supply:

    • Condenser fan motor

    • Compressor motor and thermal overload device

    • Water supply valve assembly

  2. YnD1owCUK34FFw6O
    YnD1owCUK34FFw6O
    2noNGCAMp4wNxHS1

    • To remove the left door handle, first open the right door.

    • Use a 2 1/2 mm hex wrench to loosen the set screws in the top and bottom of the left door handle.

  3. XMGHNVoNnAOWx4Kq
    XMGHNVoNnAOWx4Kq
    PyjMWcjXW4iUnPJM

    • Pull the left door handle straight off to remove it.

  4. oWRuHRCXTr5NIiJj
    oWRuHRCXTr5NIiJj
    6YnrPsqbNcVsCy5Z
    wi5wKPOXHqFUorWV

    • The dispenser assembly is secured by very strong clips, making it very difficult to remove. Take note of the clip location examples shown in the photos:

    • Right side clips

    • Top clips

    • Left side clips (Note, the dispenser is being held upside down for the photo, so the upper left side clips are at the bottom of the photo.)

    • During disassembly, you may break some of these clips. If you do, don't worry; the assembly does not need all the clips to be properly secured.

  5. CTnElETjK1fvgHlS
    CTnElETjK1fvgHlS
    RvDfjYthuD2bX5A3
    lIXtiBlYvAhIsjyk

    • Use a spudger to pry out the top edge of the dispenser assembly.

    • Once you've created a gap, use your fingertips to pull the edge downward.

    • Use additional spudgers to unfasten the clips securing the dispenser assembly to the refrigerator door.

    • Optionally, you may use a flat-blade screwdriver to assist in this process. Be careful not to damage the door; you may scratch the door surface or dent the rim of the dispenser opening.

  6. UqfsBqNHfDLgOCps
    UqfsBqNHfDLgOCps
    qCXylBXaBARHqLKo
    KGVyTxLyWKShZ2KB

    • Grasp the top edge of the dispenser assembly in the middle and pull outwards.

    • Continue prying and pulling around the perimeter of the assembly to release it.

  7. 3WPKXqZXT1qGYgBh
    3WPKXqZXT1qGYgBh
    6bkP1VQPOygboFQi
    Abw3uAOxHiNwfot5

    • Grasp the assembly firmly and pull it out of the refrigerator door.

    • Don't try to pull the assembly completely off the refrigerator door. The assembly is still connected with numerous wires. These are mainly connected to the left side of the dispenser.

  8. XWPnTU6YIUWsn5ia

    • Squeeze the multiple wire connectors and pull them straight off to disconnect them from the various PC boards.

    • Some of the connectors may be permanently attached to the PC board and can't be removed.

  9. Zi1IQrhZEPXYa14O
    Zi1IQrhZEPXYa14O
    rweD6YFQIajWSLNo

    • Squeeze and separate the various connectors in the wiring harness. The photo shows two examples.

  10. sr1iewixrcTvlsHn
    sr1iewixrcTvlsHn
    rlCyVYPQlAPSdvpN
    F61E6PgFJmrLlgo2

    • Use a Phillips screwdriver to remove the screw securing the circuit board holder to the dispenser assembly. Many, but not all, units will have this PC board and holder.

    • Lift and remove the circuit board holder from the dispenser assembly.

  11. dNEyUhpEplmQn6ff

    • You can now remove the dispenser from the refrigerator.

    • The circuit board holder, if present, can be suspended from the harness wires, as its weight is minimal.

  12. vmm6RP3K6mU6nvyU
    vmm6RP3K6mU6nvyU
    HJB6UUROIdSCDMuZ

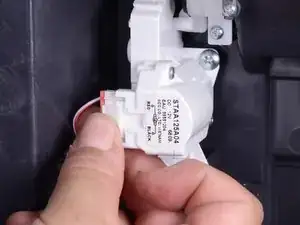

    • Squeeze and pull the flap motor connector to disconnect it.

  13. SBHIeY6hrGoeBnvU
    SBHIeY6hrGoeBnvU
    ZOVKMeOuyOuYdHfj

    • Use a Philips head screwdriver to remove the screws securing the motor in place.

    • During reassembly:

    • Before installing the motor, partially screw in the lower left screw to help position the motor.

  14. aXnWxP2idX2NRKcE
    aXnWxP2idX2NRKcE
    unJmrCWSdTVXkuE6

    • Remove the flap motor.

  15. gUYRmGK3JibjSVvW

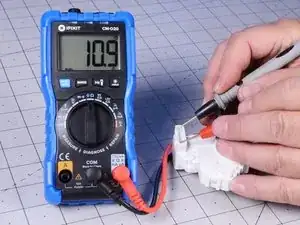

    • If you have a multimeter, you can test to see if your flap door motor is good or not.

    • Set your multimeter to the resistance function.

    • Touch one probe to each of the terminals at the same time.

    • The meter should read between 9 and 14Ω.

    • If the reading is outside of this range, replace the flap door motor.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our  Answers community for help.
