Introduzione

  1. AYmmQRZoQye23wIE
    AYmmQRZoQye23wIE
    ErvKqWcLkBjWRfOU
    • Use a plastic opening tool to seperate the back panel from the device.

    • Remove the back panel.

  2. 4ZPeGPfZiOGVEX4K
    • Place your thumb along the bottom of the battery and pry upwards to remove.

  3. ftvGaBxxLObfXorN
    • Press down on the SIM eject tab with a fingernail (or iFixit opening tool), and slide the SIM card out.

  4. HUEpgVuibQUwAJRM
    HUEpgVuibQUwAJRM
    jAgUvyiIrGYeyBeo
    • Remove the eight Phillips #0 screws from the internal support frame.

  5. SWTelH1pAqDOK2ke
    SWTelH1pAqDOK2ke
    1ukAHYlrZcLT2tLJ
    3T1QSIYjAofUggZJ
    • Use an opening tool on the marked locations to lift the edges up. There should be a small click when lifting these edges up.

  6. t2PUQVBZtWiccQtU
    • Using your hand, pick up the midframe to separate it from the phone.

    this is step 6

    Connor Gray -

    this is step 6

    please fix ifitit

    Connor Gray -

  7. tR2WX2msLdNFeiuf
    tR2WX2msLdNFeiuf
    veADGQs2IV4ZhieG
    • Unclip the front camera connector from the motherboard and lift it from the frame.

  8. 1Fpvw1sM4w4kG5dE
    1Fpvw1sM4w4kG5dE
    OHSsoifIwNqDdFgI

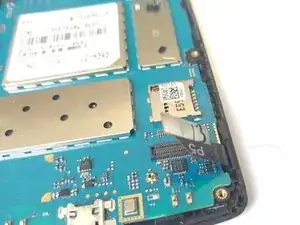

    • Detach the screen connector from the motherboard by putting your thumb underneath it and lifting up.

    • The screen connector is the part that has P5 written on it.

  9. 5tlHZ4IAjLqEeMdD
    • On the side with the screen connector, pull the two tabs away from the device.

    • Use the plastic opening tool to lift the motherboard starting on the bottom right corner and pulling upwards.

    you could also use your hands if you hold the bard by the edges

    Connor Gray -

  10. WXVAax2tNNUOQcoC
    WXVAax2tNNUOQcoC
    aNRpC635ABAB4a4o
    • Using a hot air gun or hair dryer, heat the screen assembly, and pry it from the frame using your fingers (or an iFixit prying tool).

Conclusione

To reassemble your device, follow these instructions in reverse order.
