The phone battery may be old, the CPU may be overloaded, the battery is no longer holding charge, and/or the device operating temperature is too hot. Try closing out unused apps, maintaining a safe operating temperature, and enabling power saver mode.

Before using this guide, make sure to review the LG V50 ThinQ troubleshooting page to ensure there are no other options to save your battery.

If the battery needs to be replaced, this guide will help you replace the battery for your LG V50 ThinQ android phone. Make sure the device is powered off before replacing the battery.

  1. ygLYO4JB2AbRPDty
    ygLYO4JB2AbRPDty
    JFmTkJ3vDvkxCLMa
    tEFpPdD15JCZqgWa

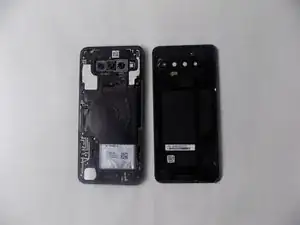

    • Flip the phone over, so that the back of the phone is facing you.

    • Using an opening pick, pry open the back cover of the phone by moving the opening pick along all sides to reveal the internal components.

  2. D3uqeECuFXZJIT1d
    D3uqeECuFXZJIT1d
    WCvANg2STJ2eNYDs
    tBe5MBdbuxK6AeL1

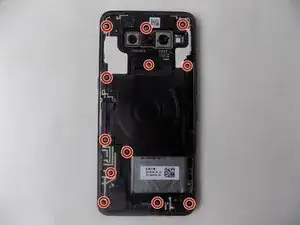

    • Remove all twelve 1 mm Phillips #000 screws.

    • Remember to keep the screws in a safe place for reassembly later!

  3. wZyONU31FJGnLKKO
    wZyONU31FJGnLKKO
    fqnq5OICgsoIkAPS
    xgQ6liQlPKhbcMgA
    • Remove the two brackets.

  4. XxFvbsSnXIXWIeiZ
    XxFvbsSnXIXWIeiZ
    WJCZqMvYvG2B6J3P
    • DO NOT attempt to remove the phone battery with a metallic/sharp prying object.

    • Disconnect the battery from the phone by removing the battery connection from the connector port.

    • Remove the battery by prying the underside of the battery and pulling upwards with the opening pick (shown in image 2).

    • Do not be too rough with the battery, as it is easy to dent/break into.

    • Now, place the new battery inside the slot, firmly pressing it into the space against the copper-colored heatsink on the bottom.

Conclusione

To reassemble your device, follow these instructions in reverse order.
