Lenovo 100e Chromebook (1st Gen) Battery Replacement

Scritto Da: Franco Iván Bello Rojas
  • Commenti: 0
Lenovo 100e Chromebook (1st Gen) Battery Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

10 - 20 minuti

Introduzione

You can easily replace this laptop battery to get back on the amazing battery life it has!

  1. yCQcOwFuegLB6gi6
    yCQcOwFuegLB6gi6
    C1LYk2fMTAiF1K35
    Midh54jRAaAuOVxs

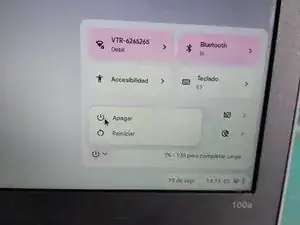

    • Unplug and turn off the chromebook device.

    • Remove the SD card if you are using one.

  2. hpUwmuBeFdnlJZuX
    hpUwmuBeFdnlJZuX
    DbmjkjIjZRuNKQBv
    5c11tNJWLw1xRZQJ

    • Turn the laptop over.

    • Remove the 10 phillips head screws and keep them organized.

    • Using a Spudger, carefully separate the cover from the corner. It snaps back in, so make sure to not break any clips.

    • Take out the cover and set it aside.

  3. wdfuPOjkwHrVoEsD
    wdfuPOjkwHrVoEsD
    1BvF6nwE5OAJUMAS

    • In the lower side of the motherboard you will find the battery connector.

    • To disconnect the battery, carefully pull the black connector in a parallel direction to the laptop.

    • Remember to take the conector out fully to avoid any shortcircuits.

  4. BuOh2TrRJQygQYOX
    BuOh2TrRJQygQYOX
    dhMKUFC24OQX1CB2
    Q26ivOIs3KZIpWAQ

    • The daugtherboard ribbon it's over the battery.

    • Lift the clip on the motherboard connector.

    • Take out the ribbon cable in an up and out direction from the motherboard connector.

    • Gently peel it off, it has some mild glue to attach it to the battery.

    • YOU MUST NEVER BEND THIS RIBBON IN A HARD WAY!

  5. koDIOcdIoH3kexDs
    koDIOcdIoH3kexDs
    ZUCUhMYjyviks5Kc

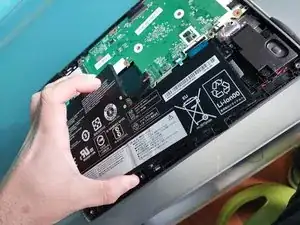

    • Remove the four Phillips head screws attaching the Battery.

    • Lift the battery from the casing.

    • If you are changing it for a new one, make sure you are disposing the old one in a safe way.

  6. ZNTIPa6mBCMpm2lA

    • This is a Li-ion Battery.

    • It runs at 11.4V and it has a 3685 mAh capacity.

    • For this model it reads battery model as "L17L3PB0". The main difference with another similar batteries is the location of its anchor points. Make sure they're the same when ordering.

Conclusione

To reassemble your device, follow these instructions in reverse order. You must plug it back to the wall power to turn it back on!

Congrats! You've upgraded your laptop battery!
