Lenovo Edge Thinkpad E431 Hard Disk Drive Replacement

Scritto Da: Angela Ferguson
  • Commenti: 0
Lenovo Edge Thinkpad E431 Hard Disk Drive Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

3 minuti

Introduzione

A guide on how to replace the hard drive on a Lenovo ThinkPad Edge E431 laptop.

  1. 6YcgG6T4ciG1pG5U

    • Close the device and remove all power cables.

    • Lay the laptop flat with the bottom facing upwards.

  2. vGKwVGl5k3mvMdyG

    • Remove the four 2mm Phillips #00 screws from the bottom panel.

  3. hsPhHlixIXqc2IAP
    hsPhHlixIXqc2IAP
    1gjZxxwOpQHsseQO

    • Remove the back panel of the device.

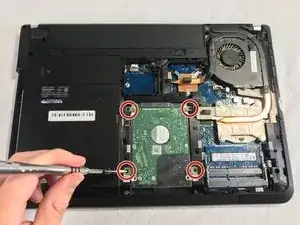

  4. TbEEqBZvCixxoBd5

    • Remove four 2mm Phillips #00 screws from the hard drive.

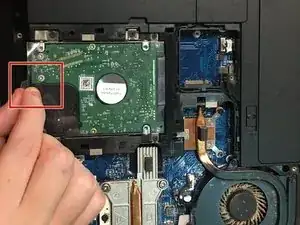

  5. yFpkV6rWMtamUJBk

    • Lift the HDD upwards by pulling on the plastic tab to begin removal.

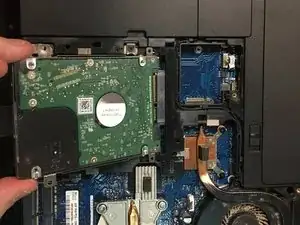

  6. fo6Sywy6xaImsScy
    fo6Sywy6xaImsScy

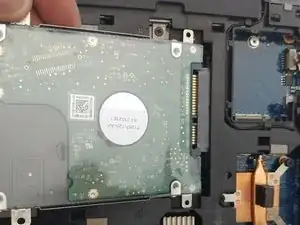

    CTdcxfKPFYp6irIO

    • Pull the HDD out of its socket.

Conclusione

To reassemble your device, follow these instructions in reverse order.
