Lenovo Ideapad 120s Battery Replacement

Scritto Da: Caiden Varao
  • Commenti: 0
Lenovo Ideapad 120s Battery Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

Nessuna stima

Introduzione

  1. sWPPjtRYuPWQaSJZ

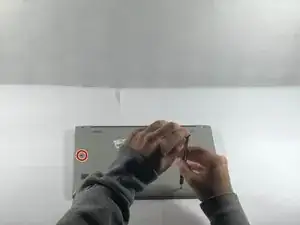

    • First power your device off so it doesn't turn on during the guide

    • Unscrew the 10 screws

  2. mPjIMy6T6xNJngwK

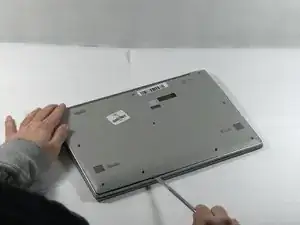

    • With a prying tool, pry out the back cover

    • You’ll hear clicking noises as you pry the cover off, the computer isn’t breaking, there are tabs that hold the back cover on the device.

  3. UehtqwfGh2AP1jVr

    • Disconnect the wire that connects to the motherboard

    • unscrew the 5 screws holding the battery in place

  4. djSaOcJCaV3GFFb1

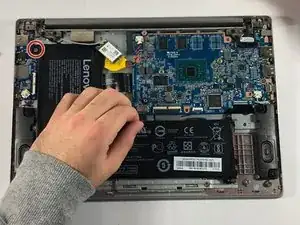

    • Unscrew the 5 screws that hold the battery together

Conclusione

To reassemble your device, follow these instructions in reverse order.
