Lenovo ThinkPad P1 Gen2 Laptop Battery Replacement

Scritto Da: Max Kletskov
  • Commenti: 4
Lenovo ThinkPad P1 Gen2 Laptop Battery Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

Nessuna stima

Introduzione

How to replace the battery of a Lenovo ThinkPad P1 Gen2 laptop. The images and information in this guide were taken from this computer's service manual.

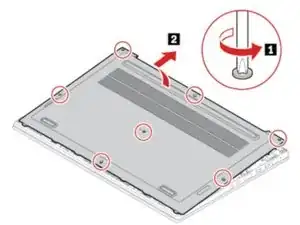

  1. nQMatlUBLpjPFQgE

    • Remove the 7 screws holding the base cover in place.

    • Remove the base cover.

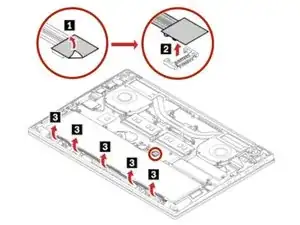

  2. WofotqIGVsABd4VS

    • Peel up the insulated sheet from the battery connector.

    • Unplug the battery connector in the direction showed by the arrow.

    When Lifting up on the battery connector begin by lifting/leveraging the end of the connector away from the wires/ribbon first. When I tried to lift under the wires end it seemed firm...too firm to comfortably lift without risking breaking the connector on the MB. When I started with the outside end away from the wires that tilted up easier and then the other end of the connector snapped out. Just be careful and don't rush.

    fluxcomputerrepair -

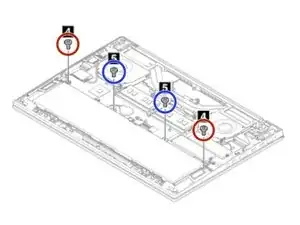

  3. 4hE56fMOLa1wvaL6

    • Remove the two M2 × L4 mm, flat-head screws.

    • Remove the two M2 × L5 mm, flat-head, screws.

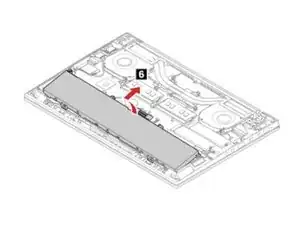

  4. hJfaFTAbhFoUeShD

    • Remove the battery.

Conclusione

To replace the battery & reassemble your device, follow these instructions in reverse order.

Autore

Max Kletskov

Membro da: 22/04/20

40217 Reputazione

3 commenti

Great Thank you for info

Brad -

Will this battery generate a Bios not authentic battery warning? Other replacement batteries would not charge in my P1 Gen2 ThinkPad.

hello -

Is it compatible for Lenovo Thinkpad P1 Gen1 Type 20MD ?

k2ki -
