Lenovo ThinkPad T480 SSD Replacement

Scritto Da: Dane Elliott-Dyson
  • Commenti: 0
Lenovo ThinkPad T480 SSD Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

Nessuna stima

Introduzione

This guide will show you how to replace the SSD on your Lenovo Thinkpad T480 laptop. Backup your data before replacing if possible.

  1. BKNEddyAeFBYgQkT

    • Flip laptop over on its back.

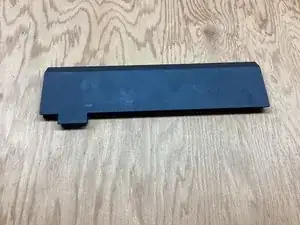

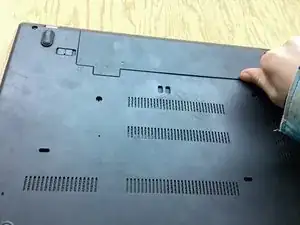

  2. xvLQrjEWEobHiYPB
    xvLQrjEWEobHiYPB
    LFj5YFMCTqKGkYBM

    • Push Clip 1 to the side. While holding Clip 2 to the side, push the battery out of the laptop.

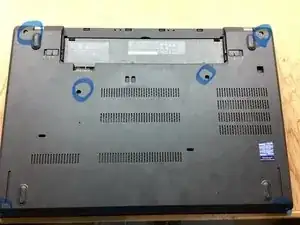

  3. cMIKBYOqWCKcivNg

    • Remove all Phillip-head screws shown.

    • The screws will not come out of the casing, so unscrew them all the way until they don’t go any higher.

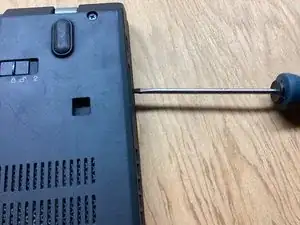

  4. hgU1OljQLKuLIyLu

    • Pry up on the casing using a spudger or a flat-head screwdriver and remove the back.

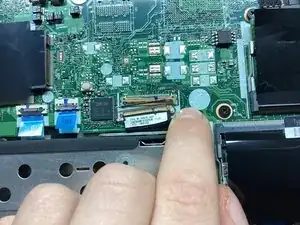

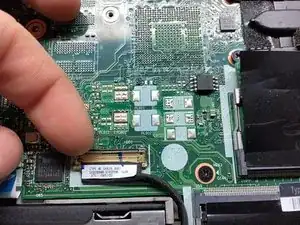

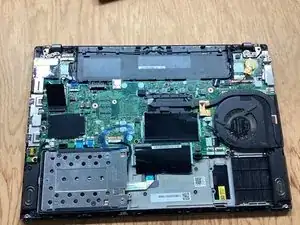

  5. 6x25OhlXeIOXNKjO
    6x25OhlXeIOXNKjO
    ZCX5fNAJqpPVmlx2
    vexbNFSXw5o1VEHq

    • Pry up on the little metal bar on the connector and pull the connector out of its socket.

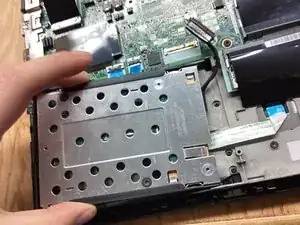

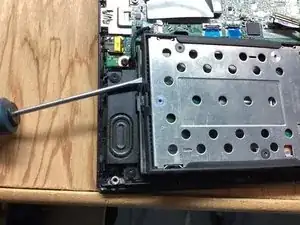

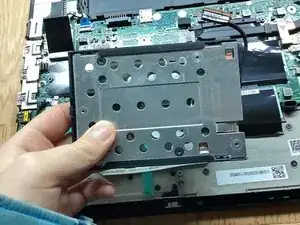

  6. 5SaO3GAH6AIemAr1
    5SaO3GAH6AIemAr1
    6MItgYPeSQgVNeCn
    ahWVNTfOZAlXSJai

    • Pry up on the left side of the SSD casing. Pull the casing to the left, and remove.

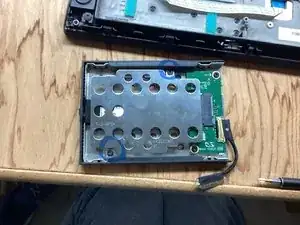

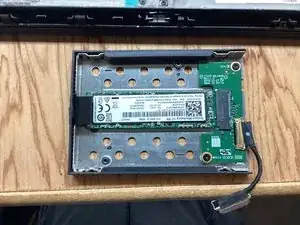

  7. lnMSFmwP51WMddMv
    lnMSFmwP51WMddMv
    oJg2KCxpTwNbjGIb

    • Remove the following 4mm Phillip-head screws and remove the plate.

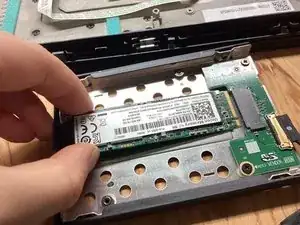

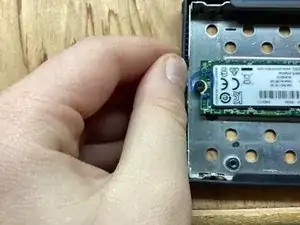

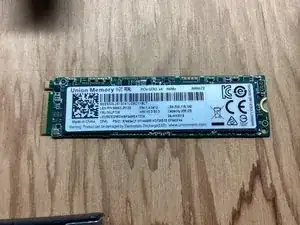

  8. HHHe12JbEfWkmG22
    HHHe12JbEfWkmG22
    4WEo23kTyFJRsw2O
    aYP2vkOjQIX62r5J

    • Remove the 4mm Phillip-head screw and pull the SSD out of its socket.

Conclusione

To reassemble your device, follow these instructions in reverse order.
